DPST Open Liquid Level Switch Close on Rise 600VAC MPN:9036DR31C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1782207

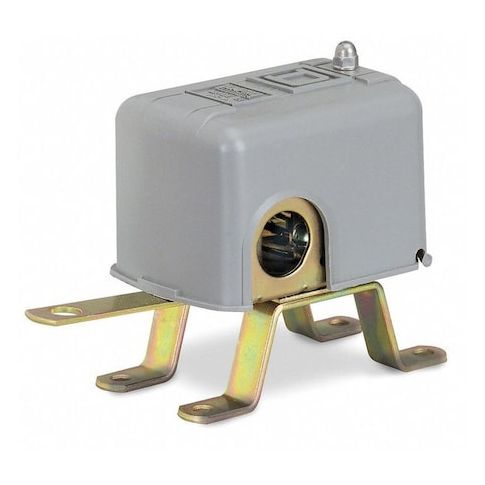

DPST Open Liquid Level Switch Close on Rise 600VAC
This Telemecanique Sensors DPST Open Liquid Level Switch is a reliable and versatile solution for monitoring liquid levels in a variety of applications. The switch can be used in open tank mounting configurations and is designed to close on rise, providing a clear indication of liquid levels. With a high current rating of 10 amps and a VA rating of 460V AC, it can handle demanding applications. Suitable for use in temperatures ranging from -22°F to 220°F, this switch is ideal for use in industrial, commercial, and residential settings, including water treatment, chemical processing, and storage tank monitoring.
Top product features:
- Close on Rise: The switch closes its contacts when the liquid level rises.
- DPST-2NC Contact Form: The switch has double-pole, single-throw contacts with two normally closed positions.
- Stainless Steel Float: The switch has a float made of durable stainless steel that can withstand various environmental conditions.
Top product applications:
- Liquid level monitoring in industrial processes
- Monitoring liquid levels in chemical tanks
- Measuring water levels in swimming pools
Open Liquid Level Switch, 10 A Amps, Contact Form DPST-2NC, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 7, 9, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 5.75 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 5.25 in, Width 4.25 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.10
- Package Width: 7.30
- Package Height: 6.10
- Package Weight: 3.83
Product info last updated on February 12, 2026 11:33am UTC
Category: Pump Controls
