Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 5 m, Bare Wire, 2 Wires, Unshielded MPN:XS230SAMAL5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1500633

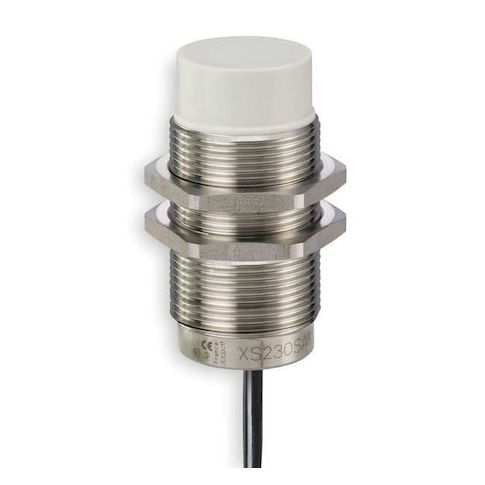

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 5 m, Bare Wire, 2 Wires, Unshielded
This 30mm cylindrical inductive proximity sensor is designed for use in harsh environments, featuring a stainless steel housing and IP68/IP69K rating for dust and water resistance. With a power requirement of 24-240V AC/DC and an operating frequency of 25Hz AC/300Hz DC, this sensor is suitable for a wide range of applications, including industrial automation, food processing, and pharmaceutical manufacturing. Its 2-wire output and 200mA current load make it easy to integrate into existing systems. The sensor's long cable length and compact design make it ideal for use in tight spaces, providing reliable detection up to 22mm.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects up to 5m away
- Operating frequency allows for reliable detection in both AC and DC environments
Top product applications:
- Material Handling Systems
- Automotive Manufacturing Lines
- Food Processing Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/300 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 5m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material 316L Stainless Steel, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.00
- Package Height: 1.00
- Package Weight: 0.30
Product info last updated on April 1, 2026 7:08pm UTC
Category: Industrial Electrical Controls and Automation
