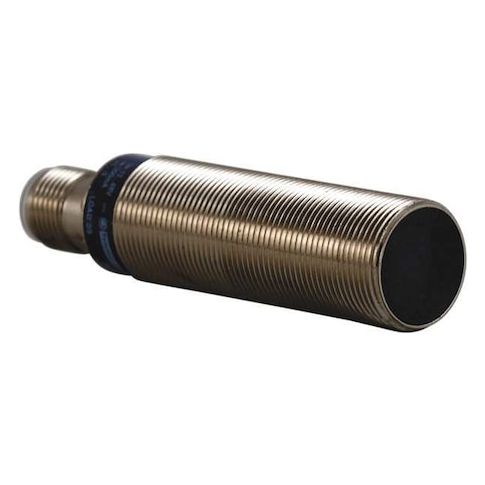

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded MPN:XS618B1PBM12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1406666
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded
This inductive cylindrical proximity sensor is a reliable and efficient solution for detecting objects in various industrial applications. Its compact design and robust construction make it suitable for use in harsh environments, with a NEMA rating of 4X and IP67/IP69K protection. The sensor operates at a frequency of 1,000 Hz and has a maximum detecting distance of 8 mm, with a 3-wire PNP output circuit. It can be used in applications such as material handling, packaging, and automation, and is compatible with 12-24V DC power supplies. Its compact size and high reliability make it an ideal choice for a variety of industrial uses.
Top product features:
- Cylindrical design for easy installation in tight spaces
- Shielded to protect against electromagnetic interference
- Detects objects up to 8 mm away with a 1,000 Hz operating frequency
Top product applications:
- Position sensing in conveyor systems
- Machine monitoring and control in industrial automation
- Detection of metal objects in food processing equipment
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 74 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.60
- Package Weight: 0.15
Product info last updated on March 13, 2026 11:25am UTC
Category: Industrial Electrical Controls and Automation
