Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 5 m, Bare Wire, 3 Wires, Shielded MPN:XS1N12NA349L1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1381834

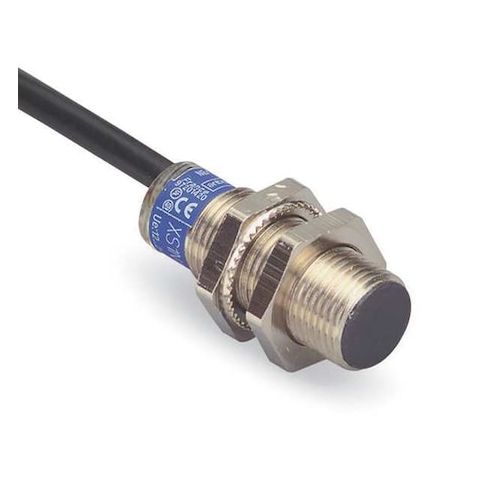

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 5 m, Bare Wire, 3 Wires, Shielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects in various industrial applications. With a 12mm diameter and 41mm length, it can be easily integrated into tight spaces. The sensor's operating frequency of 2,500 Hz and maximum detecting distance of 4mm make it suitable for detecting small objects. Its 5m cable and 3-wire NPN output circuit enable easy connection to control systems. Suitable for use in harsh environments, the sensor has an IP68 and IP69K rating, making it ideal for applications in food processing, pharmaceuticals, and other industries where hygiene is crucial.
Top product features:
- Inductive Proximity Sensor detects objects up to 4 mm away
- Shielded to protect against electromagnetic interference
- Operates at a frequency of 2,500 Hz for reliable detection
Top product applications:
- Machine Automation
- Industrial Control Panels
- Material Handling Systems
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 5m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 122 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 7.80
- Package Height: 0.50
- Package Weight: 0.35
Product info last updated on February 1, 2026 10:34am UTC
Category: Industrial Electrical Controls and Automation
