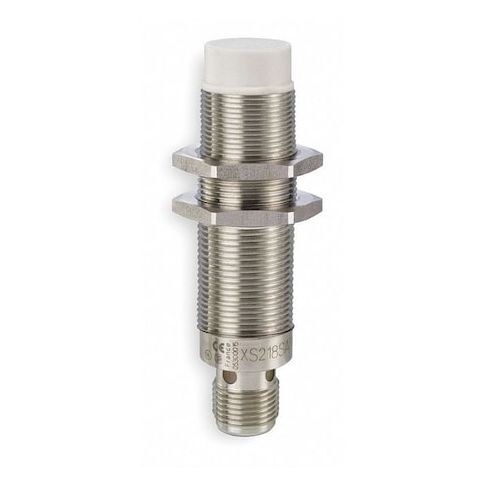

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 1/2 in Connector, 2 Wires, Unshielded MPN:XS218SAMAU20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1365935
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 1/2 in Connector, 2 Wires, Unshielded
This inductive proximity sensor is designed for use in harsh environments, with a 316L stainless steel housing that provides resistance to corrosion and wear. It can detect objects as close as 12 mm and operates at frequencies of 25 Hz AC or 1000 Hz DC, making it suitable for a variety of applications. The sensor's 2-wire output and NO output mode make it easy to integrate into existing systems. Ideal for use in food processing, pharmaceutical, and medical equipment manufacturing, this sensor can withstand temperatures from -13°F to 185°F and is rated IP67 and IP69K for use in wet and high-pressure environments.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Operating frequency range of 25 Hz AC and 1000 Hz DC enables reliable detection in various applications
- Detecting distance of up to 12 mm provides accurate sensing in a wide range of environments
Top product applications:
- Automotive applications due to its high temperature range and resistance to corrosion
- Medical equipment and devices requiring precise detection and a high level of cleanliness
- Food processing and packaging machinery where a stainless steel sensor can withstand harsh environments
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/1000 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material 316L Stainless Steel, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.70
- Package Weight: 0.15
Product info last updated on February 1, 2026 12:46pm UTC
Category: Industrial Electrical Controls and Automation
