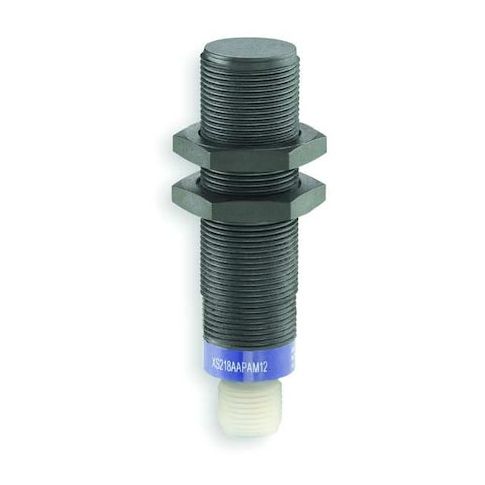

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, 1/2 in Connector, 2 Wires, Unshielded MPN:XS218AAMAU20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1246217
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, 1/2 in Connector, 2 Wires, Unshielded
This Telemecanique Sensors inductive proximity sensor is a compact and reliable solution for detecting objects in various industrial applications. Its cylindrical design and 18mm diameter make it suitable for use in tight spaces. The sensor operates on a wide range of voltages (24-240V AC/DC) and frequencies (25Hz AC/1000Hz DC), providing flexibility in installation. With a maximum detecting distance of 12mm and a 200mA current load, it is ideal for detecting metal objects in applications such as conveyor belt monitoring, packaging, and material handling. Its IP67 and IP69K ratings ensure durability in harsh environments.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects within 12 mm distance
- Operates in a wide temperature range (-13 to 185°F)
Top product applications:
- Motion detection in industrial equipment
- Material handling and conveyor systems
- Automated manufacturing and assembly lines
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/1000 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.70
- Package Weight: 0.10
Product info last updated on January 31, 2026 8:17am UTC
Category: Industrial Electrical Controls and Automation
