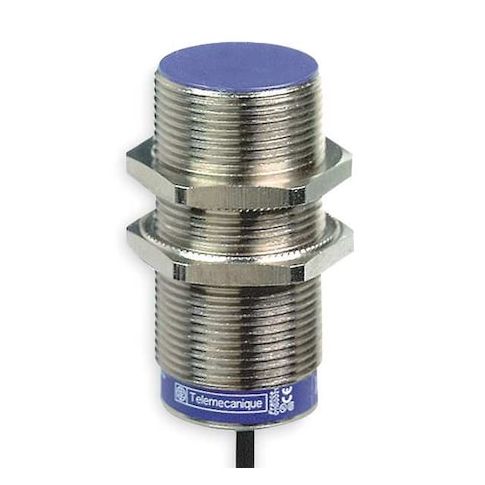

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded MPN:XS630B1MBL2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1243602
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded
This inductive cylindrical proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. With a maximum detecting distance of 15mm and a power requirement of 24-240V AC/DC, it can be used in both industrial and commercial settings. The sensor's shielded design and IP68/IP69K rating make it suitable for harsh environments, while its nickel-plated brass construction ensures durability. The sensor's output is easily connected via a 2-meter cable, and its compact size allows for easy integration into existing systems. Suitable for use in conveyor systems, robotics, and machine automation.
Top product features:
- Operates at a frequency of 25 Hz AC/500 Hz DC
- Detects objects up to 15 mm away
- Has a shielded design to reduce electromagnetic interference
Top product applications:
- Machine Guarding
- Automated Production Lines
- Material Handling Systems
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 25 Hz AC/500 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.80
- Package Height: 1.70
- Package Weight: 0.30
Product info last updated on January 31, 2026 10:42pm UTC
Category: Industrial Electrical Controls and Automation
