DPST Liquid Level Switch Close on Rise 600VAC MPN:9037EW9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1090205

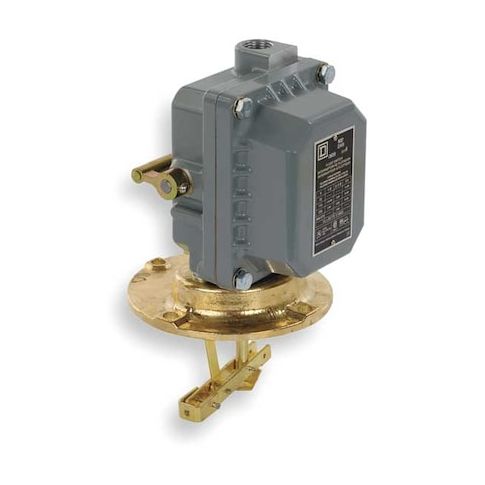

DPST Liquid Level Switch Close on Rise 600VAC
The Telemecanique Sensors DPST Liquid Level Switch is a reliable and versatile solution for monitoring liquid levels in a variety of applications. Suitable for use in open tanks, this switch closes on rise, providing accurate and consistent readings. Its durable aluminum body and robust design ensure long-lasting performance in harsh environments. With a maximum current of 600 A and voltage of 600 V, it can handle high-power applications. Ideal for use in industrial settings, such as oil and gas, chemical processing, and water treatment, this switch provides reliable level monitoring and can be used in temperatures ranging from -22°F to 220°F.
Top product features:
- Close on rise switch function activates when liquid level rises
- Switch activates at a float travel of 2 1/16 in
- DPST-2NC contact form allows for 2 normally closed contacts
Top product applications:
- Level monitoring in industrial tanks and vessels
- Monitoring of liquid levels in water treatment plants
- Automated shutdown of pumps in chemical processing plants
Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 2 1/16 in, NEMA Rating 4, Tank Connection Size 5-1/8 in, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 3.86 in, Height 7.6 in, Width 7.6 in, Contact Form DPST-2NC, Max. Current 600 A, Max. Voltage 600 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Aluminum, Float Position Below, Float Rod Angle Horizontal, Conduit Size 3/4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 7.60
- Package Height: 7.50
- Package Weight: 7.00
Product info last updated on March 7, 2026 10:20am UTC
Category: Pump Controls
