AlternatrClosedLiquidLvlSwtch, Steel, 575V MPN:9038CG31F3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1041932

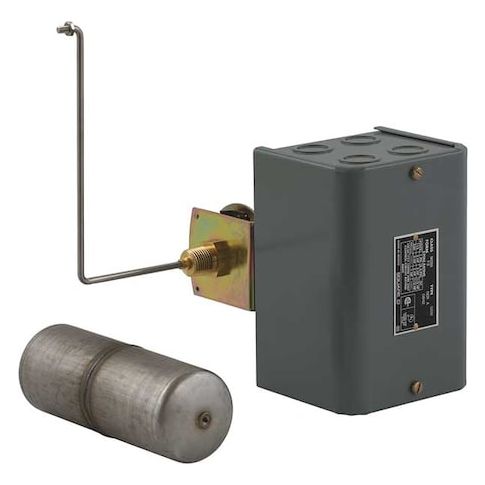

AlternatrClosedLiquidLvlSwtch, Steel, 575V
This Telemecanique Sensors Alternator Closed Liquid Level Switch is a reliable and efficient solution for monitoring liquid levels in a variety of applications, including industrial processes, water treatment, and chemical storage. The switch features a close-on-rise function, ensuring accurate and consistent readings. Its stainless steel construction and NEMA rating 1 make it suitable for harsh environments and demanding conditions. With a maximum pressure of 50 psi and operating temperature range of -22 to 220 degrees F, this switch is ideal for use in tanks, reservoirs, and other liquid storage systems. Its compact design and easy installation make it a convenient choice.
Top product features:
- Switch function closes on liquid rise
- Float travel is 6 1/2 inches
- Stem and float are made of stainless steel
Top product applications:
- Liquid level monitoring in oil tanks
- Monitoring liquid levels in chemical processing tanks
- Level indication in fuel storage tanks
Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 6 1/2 in, NEMA Rating 1, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 17.81 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Stem Length 4 in, Height 5.94 in, Width 6.84 in, Contact Form DPST-4NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 11.00
- Package Height: 9.40
- Package Weight: 7.65
Product info last updated on February 6, 2026 4:52pm UTC
Category: Industrial Electrical Controls and Automation
