OpenLiquidLvlSwtch, Polypropylene, DPST2NC MPN:9036FG30
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1037635

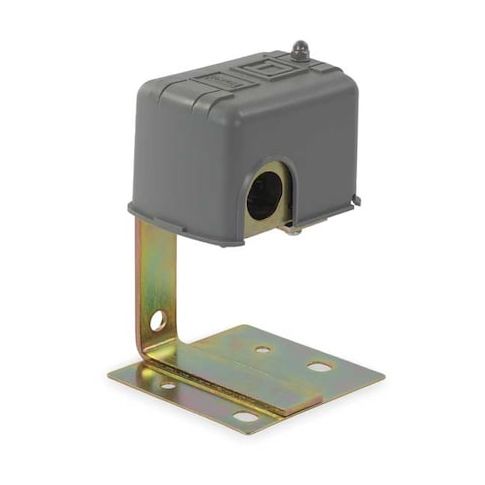

OpenLiquidLvlSwtch, Polypropylene, DPST2NC
The Lqd Lvl Swch is a reliable liquid level switch designed for use in a variety of applications, including industrial and commercial settings. Its vertical opening tank design and close-on-rise function make it ideal for monitoring liquid levels in tanks and vessels. The switch's high current rating and voltage capacity enable it to handle demanding applications, while its stainless steel float and polypropylene body ensure durability and resistance to corrosion. Suitable for use in temperatures ranging from -22°F to 220°F, this switch is perfect for use in chemical processing, oil and gas, and water treatment facilities.
Top product features:
- Close On Rise function allows the switch to turn off when the liquid level rises to a certain point.
- Float travel of 1 1/4 in allows for precise detection of liquid levels in the tank.
- Stainless steel float material provides durability and resistance to corrosion in harsh environments.
Top product applications:
- Liquid Level Monitoring in Chemical Processing Plants
- Monitoring Liquid Levels in Storage Tanks for Industrial Applications
- Automated Liquid Level Control in Power Generation Facilities
Open Liquid Level Switch, 10 A Amps, Contact Form DPST-2NC, VA Rating 460VCA, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 4.38 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 2.55 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Polypropylene
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.90
- Package Width: 5.30
- Package Height: 5.00
- Package Weight: 1.45
Product info last updated on January 23, 2026 9:35pm UTC
Category: Industrial Electrical Controls and Automation
