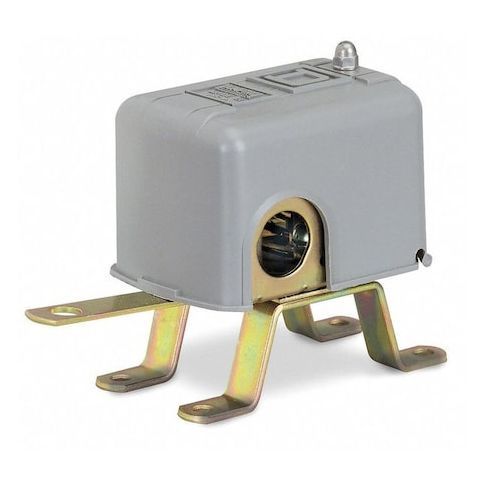

DPST Open Liquid Level Switch Open On Rise 575VAC MPN:9036GG2R
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0732627
DPST Open Liquid Level Switch Open On Rise 575VAC
The Telemecanique Sensors DPST Open Liquid Level Switch is a reliable and efficient solution for monitoring liquid levels in various applications. This open liquid level switch is designed to open on rise, making it ideal for use in tank monitoring, overflow protection, and level indication. With a high current rating of 10 amps and a maximum voltage of 575VAC, it can handle demanding applications. Its durable construction and stainless steel float ensure long-lasting performance in temperatures ranging from -22°F to 220°F. Suitable for use in industrial, commercial, and residential settings, this switch provides peace of mind and helps prevent costly overflows.
Top product features:
- Open Liquid Level Switch function that activates when the liquid level rises
- Contact Form DPST-2NO, providing a dual-pole single-throw switch with two normally open contacts
- Float Travel of 1 1/4 in, allowing for adjustable sensitivity in liquid level detection
Top product applications:
- Level monitoring in water treatment plants
- Monitoring liquid levels in industrial tanks
- Alarm and shutdown control in chemical processing plants
Open Liquid Level Switch, 10 A Amps, Contact Form DPST-2NO, VA Rating 460VCA, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Open On Rise, Overall Length 7.1 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 5.56 in, Width 3.43 in, Max. Current 600 A, Max. Voltage 575, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Thermoplastic
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.90
- Package Height: 7.50
- Package Weight: 2.25
Product info last updated on April 9, 2026 2:50am UTC
Category: Pump Controls
