Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded MPN:XS112BLNAM12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0697645

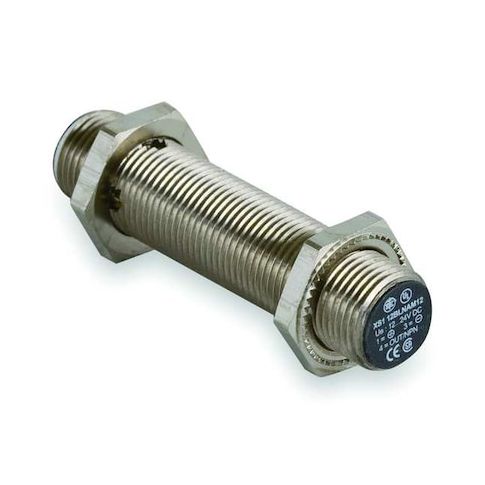

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded
This cylindrical inductive proximity sensor is designed for use in a variety of applications, including industrial automation and material handling. Its compact 12mm diameter and 41mm length make it ideal for installation in tight spaces. The sensor is powered by 12-24V DC and features a 3-wire NPN output circuit. With a maximum detecting distance of 2mm and a frequency of 2,000Hz, it provides accurate detection of metal objects. The sensor's shielded design and IP67 rating ensure reliable operation in harsh environments, making it suitable for use in food processing, pharmaceutical, and other industries where hygiene is critical.
Top product features:
- Cylindrical design for easy mounting in tight spaces
- Detects objects within 2 mm of the sensor
- Operates at a frequency of 2,000 Hz for precise detection
Top product applications:
- Automotive Part Detection
- Machine Guarding
- Material Handling Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.60
- Package Weight: 0.09
Product info last updated on February 1, 2026 9:00am UTC
Category: Industrial Electrical Controls and Automation
