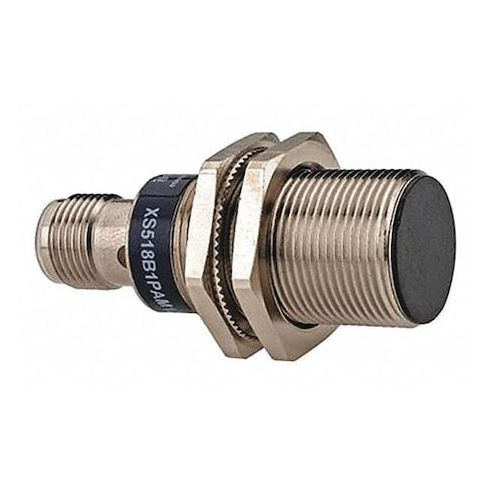

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded MPN:XS518B1PAM12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0636377
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded
This inductive proximity sensor is a reliable and versatile solution for detecting the presence or absence of metal objects. With a detection distance of 5 mm, it's ideal for applications such as conveyor belt monitoring, robotic arms, and machinery control. The sensor's 2,000 Hz operating frequency and 3-wire PNP output ensure precise and efficient operation. Its compact size and rugged design make it suitable for harsh environments, while its IP67 and IP69K ratings ensure protection against water and dust. Suitable for use in temperatures ranging from -13 to 158°F, this sensor is a reliable choice for a wide range of industrial applications.
Top product features:
- Cylindrical design with a diameter of 18 mm
- Shielded for electromagnetic interference protection
- Detects objects at a distance of up to 5 mm
Top product applications:
- Industrial Automation
- Machine Vision Systems
- Robotics and Mechatronics
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.50
- Package Weight: 0.12
Product info last updated on January 15, 2026 8:01am UTC
Category: Industrial Electrical Controls and Automation
