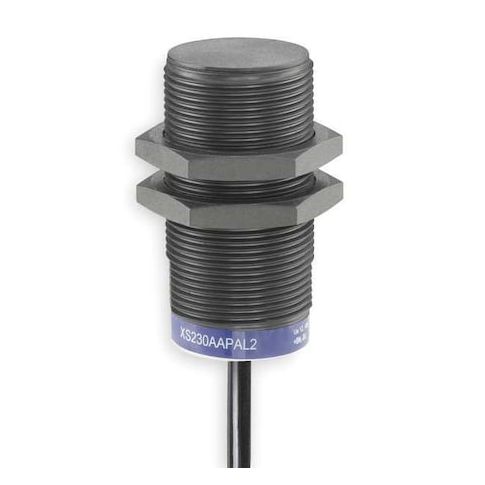

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 2 Wires, Unshielded MPN:XS230AAMAL2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0599243
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 2 Wires, Unshielded
This versatile inductive proximity sensor is ideal for detecting metal objects in a wide range of applications, including industrial automation, material handling, and robotics. Its compact cylindrical design and 30mm diameter make it easy to integrate into tight spaces. With a maximum detecting distance of 22mm and a frequency range of 25Hz AC/300Hz DC, it provides reliable and precise detection. The sensor operates on a wide voltage range of 24-240V AC/DC and has a maximum current load of 200mA, making it suitable for various power requirements. Its rugged design and IP68/IP69K rating ensure durability in harsh environments.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects objects at distances up to 22 mm
- Operates on a wide range of voltages, 24 to 240V AC/DC
Top product applications:
- Machine Guarding
- Detecting obstacles in conveyor systems
- Automated door control
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/300 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.80
- Package Height: 1.70
- Package Weight: 0.30
Product info last updated on January 15, 2026 7:59am UTC
Category: Industrial Electrical Controls and Automation
