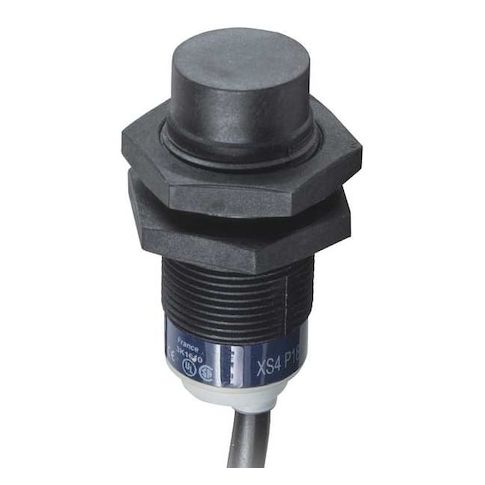

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PBT, 2 m, Bare Wire, 2 Wires, Unshielded MPN:XS4P18AB120
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0478086
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PBT, 2 m, Bare Wire, 2 Wires, Unshielded
This Telemecanique Sensors inductive proximity sensor is a reliable and efficient solution for detecting objects in various industrial applications. Its cylindrical design allows for easy placement in tight spaces, while its 18mm diameter and 8mm detecting distance provide precise detection capabilities. The sensor operates at 500Hz and can be powered by 12-24VCD, making it suitable for a wide range of applications. Its IP67 rating ensures protection against dust and water, and its PBT case material provides excellent durability. Ideal for use in automation, robotics, and machine vision, this sensor offers accurate and reliable detection in harsh environments.
Top product features:
- Cylindrical shape allows for easy mounting and installation in tight spaces.
- Operating frequency of 500 Hz enables reliable detection of objects at a distance.
- Output circuit type is 2 Wire, allowing for simple and straightforward connection.
Top product applications:
- Automatic door openers
- Machine tool detection
- Conveyor belt monitoring
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24VCD, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating IP67, Case Material PBT, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 4mA, Standards CE, CSA, RoHS, UL Listed
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.80
- Package Height: 1.70
- Package Weight: 0.20
Product info last updated on January 15, 2026 7:47am UTC
Category: Industrial Electrical Controls and Automation
