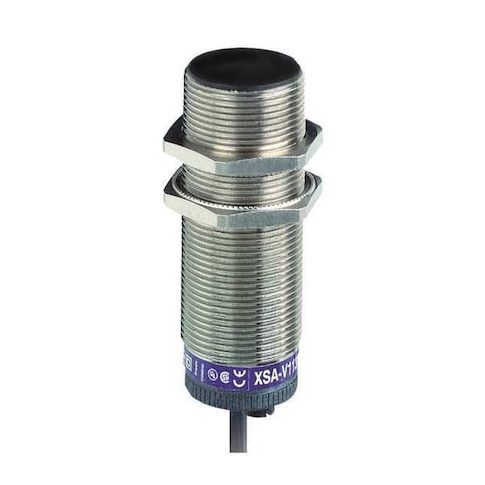

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded MPN:XSAV12801
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0478059
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in various industrial applications. Its cylindrical design allows for easy mounting and flexibility in tight spaces. With a maximum detecting distance of 10 mm and a high-frequency operating range of 800 Hz, it provides accurate and fast detection. The sensor's 24-210V DC power requirement and 2-wire output make it easy to integrate into existing systems. Suitable for use in harsh environments with an IP67 rating and operating temperatures from -13°F to 158°F, this sensor is ideal for applications such as material handling, automation, and robotics.
Top product features:
- Cylindrical shape for easy installation in tight spaces
- Inductive sensing technology for reliable detection of metal objects
- Operating frequency of 800 Hz for fast and accurate detection
Top product applications:
- Machine Automation
- Material Handling Systems
- Robotics and Automation
Inductive Cylindrical Proximity Sensor, Inductive, 81 mm, Proximity Sensor Power Requirement 24 to 210 V DC, Unshielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating IP67, Case Material Nickel Plated Brass, Length 81 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 1.5mA, Standards CCC, CE, CSA, RoHS, UL Listed
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.80
- Package Height: 1.50
- Package Weight: 0.50
Product info last updated on January 15, 2026 7:47am UTC
Category: Industrial Electrical Controls and Automation
