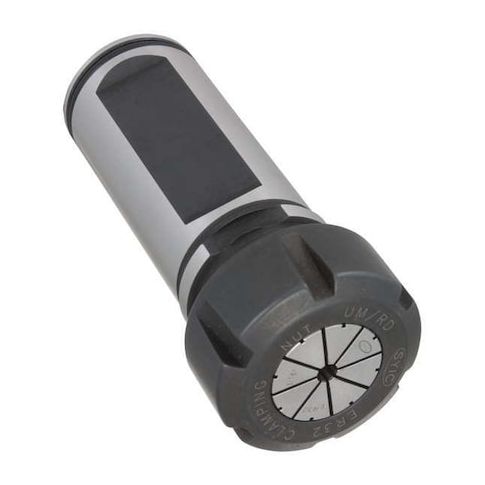

Collet Chuck, ER40, 60mm Projection MPN:04790
Collet Chuck, ER40, 60mm Projection
The Techniks ER40 Collet Chuck is a precision tool designed for use in CNC machining and metalworking applications. With a straight dimension type and BT30 taper size, it provides accurate and reliable performance. The chuck features a 60mm projection and can accommodate collets from 0.086 to 1.024 inches in diameter. Made from high-strength 8620 steel, it is balanceable and pre-balanced for smooth operation. The chuck is also designed for coolant through, ensuring efficient chip removal and extended tool life. Ideal for use in automotive, aerospace, and other industries where precision and reliability are crucial.
Top product features:
- Collet Chuck can hold collets with a minimum capacity of 0.086 In.
- Collet Chuck can hold collets with a maximum capacity of 1.024 In.
- Collet Chuck is balanced for smooth operation.
Top product applications:
- Machining small to medium-sized parts with a high degree of accuracy
- Precision drilling and tapping operations
- Turning and boring operations on medium-sized workpieces
Collet Chuck, Dimension Type Straight, Taper Size BT30, Collet Series ER40, Min. Collet Capacity 0.086 In., Max. Collet Capacity 1.024 In., Projection 60mm, Nut Dia. 2.48 In., Yes Runout, Spindle Yes, Balanceable Yes, Pre-Balanced Yes, Coolant Through Yes, Material 8620 Steel, For Use With 04617
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.75
- Package Width: 2.75
- Package Height: 5.50
- Package Weight: 2.40
Product info last updated on February 3, 2026 12:51am UTC
Category: Machining
