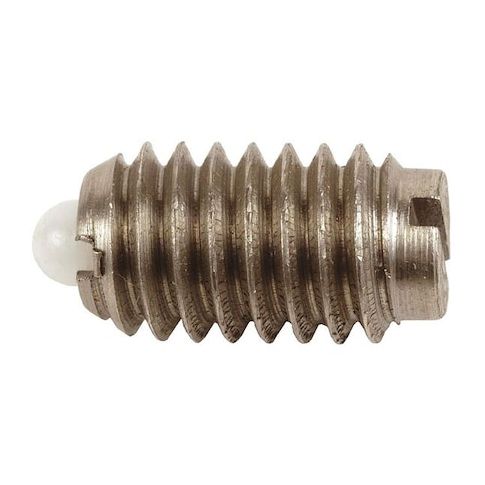

Spring Plunger w/o Locking, 1/4, 17/32, PK5 MPN:52703X01
Spring Plunger w/o Locking, 1/4, 17/32, PK5
This versatile Spring Plunger is designed for applications requiring a reliable and precise force delivery system. With a standard nose shape and Delrin plunger material, it provides a consistent and repeatable force of 3.5 lbf, making it ideal for use in assembly, testing, and quality control environments. The 1/4-20 thread size and slotted drive mounting type ensure easy integration into your existing systems. Suitable for use in a variety of industries, including aerospace, automotive, and medical device manufacturing, this spring plunger offers a reliable and efficient solution for applications requiring precise force delivery.
Top product features:
- Spring-loaded plunger design provides a consistent and controlled force
- Standard nose shape allows for effective engagement with a variety of surfaces
- Zinc-plated body and plunger provide corrosion resistance
Top product applications:
- Automotive applications such as fuel injector plungers
- Medical devices like syringe plungers
- Industrial equipment like pneumatic cylinder plungers
Spring Plunger, Thread Size 1/4 In.-20, Thread Length 0.531 in, Nose Shape Standard, Plunger Material Delrin, Plunger Dia. 0.1190 in, Plunger Projection 0.078 in, Mounting Type Slotted Drive, Body Length 0.531 in, Final Nose Force 3.5 lbf, Flange Thickness Not Applicable, Initial Nose Force 1 lbf, Overall Length 0.609 in, Plunger Width 0.119 in, Thread Pitch 0.05 in, Handle Type Not Applicable, Body Finish Zinc-Plated, Body Material Steel, Handle Material Not Applicable, Plunger Finish Zinc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 6.00
- Package Weight: 0.02
Product info last updated on January 30, 2026 12:22pm UTC
Category: Workholding and Machine Tool Accessories
