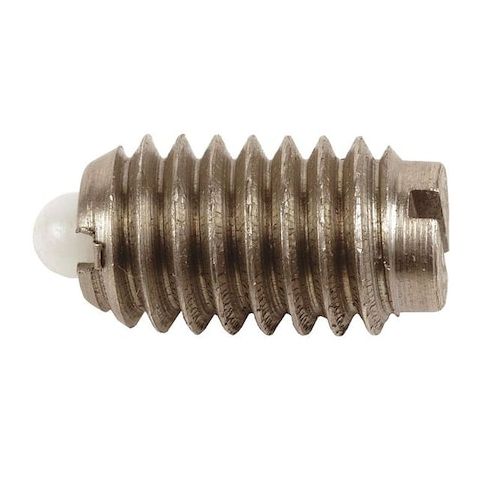

Spring Plunger, SS, No 6 D x 3/8 L, PK5 MPN:5352701
Spring Plunger, SS, No 6 D x 3/8 L, PK5
This Spring Plunger from TE-CO is designed for precise and reliable operation in a variety of applications. Its stainless steel body and Delrin plunger ensure durability and resistance to corrosion, making it ideal for use in harsh environments. The plunger's standard nose shape and slotted drive mounting type provide consistent performance and easy installation. With a final nose force of 1.5 lbf and an initial nose force of 0.5 lbf, this plunger is suitable for applications such as sampling, testing, and inspection in industries like aerospace, automotive, and medical devices. Its compact size and lightweight design make it easy to handle and store.
Top product features:
- Spring-loaded design allows for a consistent and controlled force to be applied
- Thread size #6-32 allows for compatibility with specific applications
- Standard nose shape provides a precise and consistent seal
Top product applications:
- Spring plungers are often used in applications requiring a precise amount of force to be applied to a small area.
- They can be used in laboratory equipment to create a seal in a test tube or beaker.
- Spring plungers are also used in the manufacture of medical devices to create a seal in a syringe or other medical instrument.
Spring Plunger, Thread Size #6-32, Thread Length 0.375 in, Nose Shape Standard, Plunger Material Delrin, Plunger Dia. 0.0460 in, Plunger Projection 0.036 in, Mounting Type Slotted Drive, Body Length 0.375 in, Final Nose Force 1.5 lbf, Flange Thickness Not Applicable, Initial Nose Force 0.5 lbf, Overall Length 0.411 in, Plunger Width 0.046 in, Thread Pitch 0.03 in, Handle Type Not Applicable, Body Finish Uncoated, Body Material Stainless Steel, Handle Material Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 6.00
- Package Weight: 0.01
Product info last updated on February 5, 2026 1:24am UTC
Category: Workholding and Machine Tool Accessories
