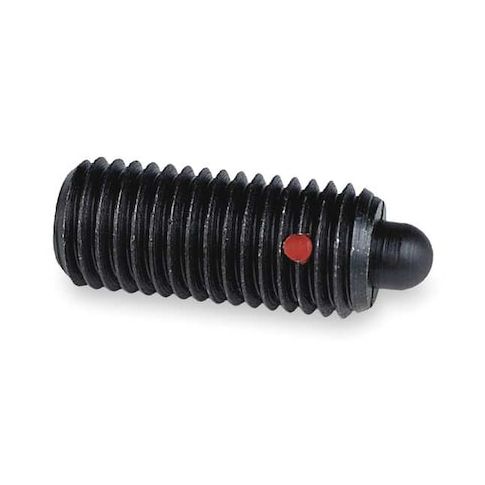

Sprng Plungr, Stl, 25/32inL, 0.106inDia, PK5 MPN:63701X01
Sprng Plungr, Stl, 25/32inL, 0.106inDia, PK5
The Spring Plunger from TE-CO is a versatile tool for indexing stops and latches in fixtures or dies. Its compact design and steel construction provide a reliable and durable solution for ejecting parts with precision. With a final nose force of 11.15 lbf and initial nose force of 4 lbf, this plunger ensures a consistent and controlled ejection process. Its applications include various manufacturing and assembly processes, making it an essential component for industries such as automotive, aerospace, and electronics. Its compact size and easy installation also make it ideal for use in confined spaces.
Top product features:
- Thread Size M6x1 allows for secure attachment to fixtures or dies
- Hex Socket Drive provides a convenient and efficient mounting system
- Pin-shaped Nose enables precise and controlled ejection of parts from fixtures or dies
Top product applications:
- Indexing Stop
- Latch to Eject Parts in Fixtures
- Latch to Eject Parts in Dies
Spring Plunger, Thread Size M6x1, Thread Length 20 mm, Nose Shape Pin, Plunger Material Steel, Plunger Dia. 0.1060 in, Plunger Projection 2.5 mm, Mounting Type Hex Socket Drive, Body Length 20 mm, Final Nose Force 11.15 lbf, Flange Thickness Not Applicable, Initial Nose Force 4 lbf, Overall Length 22.5 mm, Plunger Width 2.7 mm, Thread Pitch 1 mm, Handle Type Not Applicable, Application Indexing Stop or Latch to Eject Parts in Fixtures or Dies, Body Finish Black Oxide, Body Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 6.00
- Package Weight: 0.04
Product info last updated on February 2, 2026 10:20am UTC
Category: Workholding and Machine Tool Accessories
