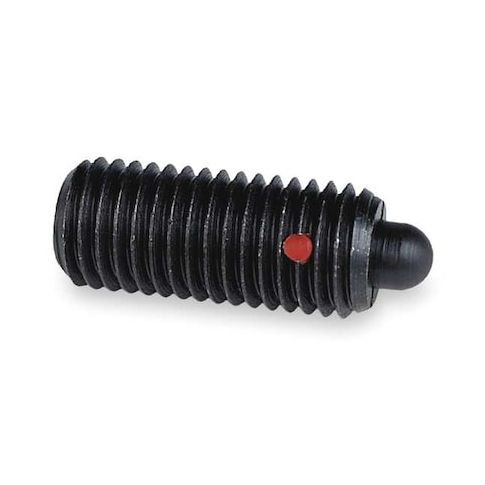

Sprng Plungr, Stl, 55/64inL, 0.157inDia, PK5 MPN:63703X01
Sprng Plungr, Stl, 55/64inL, 0.157inDia, PK5
The Spring Plunger from TE-CO is a versatile tool designed for indexing and latching applications in fixtures and dies. With a sturdy steel construction and precise dimensions, it provides a reliable and consistent force of 15.6 lbf, making it ideal for ejecting parts with precision. Its compact size and hex socket drive make it easy to integrate into existing systems. Suitable for a range of industries, including manufacturing and automation, this spring plunger offers efficient and accurate part ejection, reducing production time and increasing productivity. Its compact packaging and fast lead time make it an excellent choice for businesses of all sizes.
Top product features:
- Thread Size M10x1.5 allows for secure attachment to fixtures or dies.
- Nose Shape Pin provides a precise and controlled plunger action.
- Final Nose Force 15.6 lbf enables effective ejection of parts from fixtures or dies.
Top product applications:
- Indexing Stop
- Latch to Eject Parts in Fixtures or Dies
- Indexing Stop or Latch to Eject Parts in Fixtures or Dies
Spring Plunger, Thread Size M10x1.5, Thread Length 22 mm, Nose Shape Pin, Plunger Material Steel, Plunger Dia. 0.1570 in, Plunger Projection 3 mm, Mounting Type Hex Socket Drive, Body Length 22 mm, Final Nose Force 15.6 lbf, Flange Thickness Not Applicable, Initial Nose Force 5.6 lbf, Overall Length 25 mm, Plunger Width 4 mm, Thread Pitch 1.5 mm, Handle Type Not Applicable, Application Indexing Stop or Latch to Eject Parts in Fixtures or Dies, Body Finish Black Oxide, Body Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 6.00
- Package Weight: 0.01
Product info last updated on February 19, 2026 8:01am UTC
Category: Workholding and Machine Tool Accessories
