Sleeve Coupling Insert, 10 Coupling Size, 3, 600 RPM Max Speed, 11, 350 in-lb Max Torque, Inch, HS MPN:10HS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8512874
Sleeve Coupling Insert, 10 Coupling Size, 3, 600 RPM Max Speed, 11, 350 in-lb Max Torque, Inch, HS

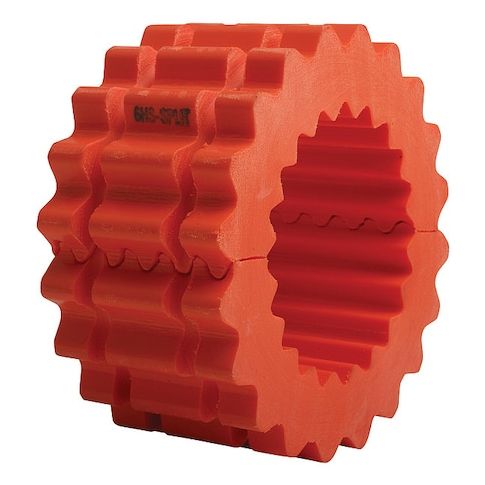

The Sure-Flex Sleeve Coupling Insert from TB WOODS is a reliable and versatile solution for various industrial applications. Designed for use in compressors, conveyors, electric motors, fans/blowers, mixers, and pumps, this coupling insert offers exceptional performance and durability. With a maximum operating temperature of 250°F and a maximum torque of 11,350 in-lb, it can handle demanding tasks with ease. The Hytrel insert material provides high flexibility and resistance to wear and tear, ensuring smooth operation and reduced maintenance. Its compact design and ease of installation make it an ideal choice for applications requiring high-speed and high-torque connections.
Top product features:
- Angular Misalignment 0.25 Degrees
- Torsional Stiffness 100,000 in-lb/rad
- Maximum Torque 11,350 in-lb
Top product applications:
- Compressors
- Conveyors
- Pumps
Sure-Flex Plus, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 11,350 in-lb, Outside Diameter 7 1/16 in, Insert Construction - New 2-Piece, Angular Misalignment 0.25 Degrees , Horsepower @ 100 RPM 18 hp, Insert Material Hytrel, Insert Width 3 7/16 in, Parallel Misalignment 0.02 in, System of Measurement Inch, Torsional Stiffness 100,000 in-lb/rad, Application Compressors, Conveyors, Electric Motors, Fans/Blowers, Mixers, Pumps, Maximum Operating Temperature 250 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 7.70
- Package Height: 3.60
- Package Weight: 2.96
