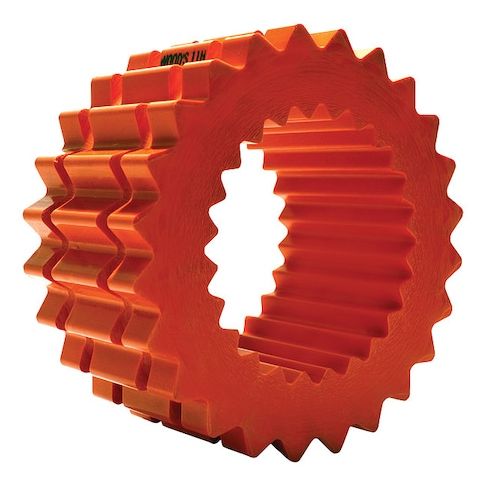

Sure-Flex Sleeve Coupling Insert, 10H, Hytrel MPN:10H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8512813
Sure-Flex Sleeve Coupling Insert, 10H, Hytrel
The Sure-Flex Sleeve Coupling Insert from TB WOODS is a reliable and versatile solution for various industrial applications. Designed for use in compressors, conveyors, electric motors, fans/blowers, mixers, and pumps, this coupling insert provides excellent performance and durability. With a maximum speed of 3,600 RPM and torque of 11,350 in-lb, it can handle demanding tasks. The Hytrel insert material ensures resistance to heat and chemicals, while the angular misalignment of 0.25 degrees and parallel misalignment of 0.02 inches provide flexibility and precision. This coupling insert is ideal for applications requiring high performance and reliability in harsh environments.
Top product features:
- Angular misalignment of 0.25 degrees allows for flexible operation in a variety of applications.
- Torsional stiffness of 100,000 in-lb/rad enables the coupling to handle high torque loads.
- Maximum operating temperature of 250 degrees F permits operation in high-heat environments.
Top product applications:
- Compressors
- Conveyors
- Electric Motors
Sure-Flex Plus, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 11,350 in-lb, Outside Diameter 7 1/16 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 0.25 Degrees , Horsepower @ 100 RPM 18 hp, Insert Material Hytrel, Insert Width 3 7/16 in, Parallel Misalignment 0.02 in, System of Measurement Inch, Torsional Stiffness 100,000 in-lb/rad, Application Compressors, Conveyors, Electric Motors, Fans/Blowers, Mixers, Pumps, Maximum Operating Temperature 250 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 8.00
- Package Height: 3.40
- Package Weight: 2.94
Product info last updated on March 11, 2026 11:19am UTC
Category: Bearings, V-belts and Power Transmission Equipment
