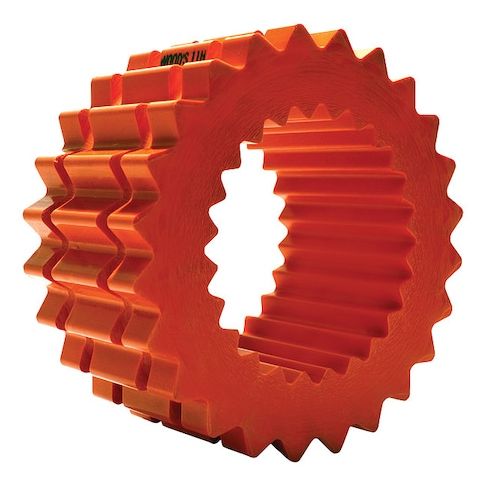

Sure-Flex Sleeve Coupling Insert, 9H, Hytrel MPN:9H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8512804
Sure-Flex Sleeve Coupling Insert, 9H, Hytrel
The Sure-Flex Sleeve Coupling Insert from TB WOODS is a high-performance solution for demanding applications. Designed for use in compressors, conveyors, electric motors, fans/blowers, mixers, and pumps, this insert provides reliable operation in harsh environments. With a maximum operating temperature of 250°F and a maximum torque of 7,200 in-lb, it can handle high-speed and high-torque applications with ease. Its angular misalignment of 0.25 degrees and parallel misalignment of 0.017 inches ensure smooth operation and long lifespan. The Hytrel material provides excellent durability and resistance to wear and tear, making it an ideal choice for heavy-duty applications.
Top product features:
- Angular misalignment of 0.25 degrees allows for flexibility in installation and operation.
- Hytrel insert material provides high torsional stiffness of 47,500 in-lb/rad for reliable power transmission.
- New 1-piece solid insert construction enables a compact design with reduced risk of component failure.
Top product applications:
- Compressors
- Conveyors
- Electric Motors
Sure-Flex Plus, Coupling Size 9, Maximum Speed 3,750 RPM, Maximum Torque 7,200 in-lb, Outside Diameter 6 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 0.25 Degrees , Horsepower @ 100 RPM 11 hp, Insert Material Hytrel, Insert Width 3 in, Parallel Misalignment 0.017 in, System of Measurement Inch, Torsional Stiffness 47,500 in-lb/rad, Application Compressors, Conveyors, Electric Motors, Fans/Blowers, Mixers, Pumps, Maximum Operating Temperature 250 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 6.60
- Package Height: 3.20
- Package Weight: 1.85
Product info last updated on February 25, 2026 6:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
