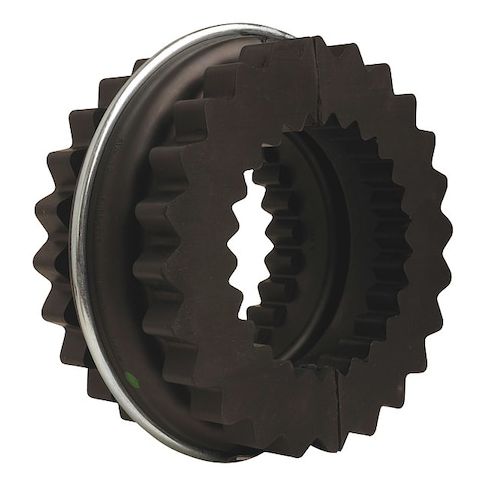

Sure-Flex Sleeve Coupling Insert, 6N, Neoprene MPN:6N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8512716
Sure-Flex Sleeve Coupling Insert, 6N, Neoprene
The Sure-Flex Sleeve Coupling Insert is a reliable and versatile solution for power transmission applications, featuring a 2-piece construction with retaining ring for added security. Suitable for use in blowers, compressors, conveyors, mixers, motors, and pumps, this neoprene insert provides excellent torque transmission and angular misalignment capabilities up to 1 degree. With a maximum operating temperature of 200°F and a maximum torque of 585 in-lb, it offers a high level of performance in demanding applications. Its compact design and easy installation make it an ideal choice for a wide range of industries and use cases.
Top product features:
- Two-piece insert construction with retaining ring for secure and reliable assembly
- Angular misalignment capability of 1 degree for flexible and adaptable mounting
- Torsional stiffness of 1,718 in-lb/rad for high torque transmission and reduced vibration
Top product applications:
- Blowers
- Compressors
- Conveyors
Sleeve Coupling Insert, Coupling Size 6, Maximum Speed 6,000 RPM, Maximum Torque 585 in-lb, Outside Diameter 3 3/4 in, Insert Construction - New 2-Piece with Retaining Ring, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 0.93 hp, Insert Material Neoprene, Insert Width 1 7/8 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Torsional Stiffness 1,718 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 200 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.40
- Package Height: 2.00
- Package Weight: 0.59
Product info last updated on February 14, 2026 12:21pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
