Sure-Flex Sleeve Coupling Insert, 9E, EPDM Rubber MPN:9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8512542

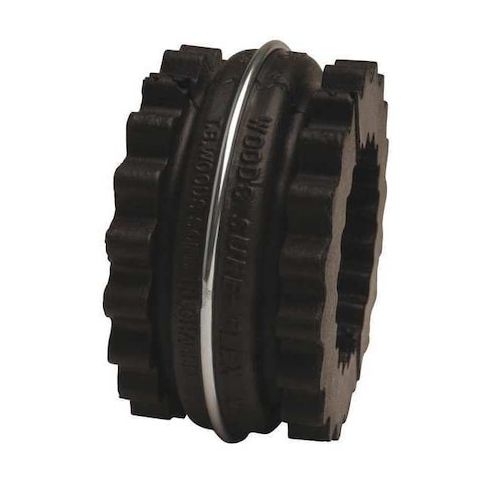

Sure-Flex Sleeve Coupling Insert, 9E, EPDM Rubber
The Sure-Flex Sleeve Coupling Insert is a versatile and reliable solution for various industrial applications. Designed for use in blower, compressor, conveyor, mixer, motor, and pump systems, this EPDM rubber insert offers exceptional flexibility and durability. With a maximum operating temperature of 275°F and a maximum torque of 2,340 in-lb, it can handle demanding applications. Its 2-piece construction with retaining ring ensures secure installation, while its angular and parallel misalignment capabilities make it ideal for systems with varying alignment requirements. The Sure-Flex Sleeve Coupling Insert is perfect for applications where flexibility and reliability are crucial.
Top product features:
- Sleeve Coupling Insert allows for 1 degree of angular misalignment
- Insert Construction features a 2-Piece design with retaining ring for secure assembly
- EPDM Insert Material provides resistance to heat and chemicals up to 275 degrees F
Top product applications:
- Blowers
- Compressors
- Conveyors
Sleeve Coupling Insert, Coupling Size 9, Maximum Speed 3,750 RPM, Maximum Torque 2,340 in-lb, Outside Diameter 6 in, Insert Construction 2-Piece with Retaining Ring, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 3.7 hp, Insert Material EPDM, Insert Width 3 in, Parallel Misalignment 0.025 in, System of Measurement Inch, Torsional Stiffness 6,875 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 6.60
- Package Height: 3.10
- Package Weight: 2.05
Product info last updated on February 21, 2026 4:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
