Sure-Flex Sleeve Coupling Insert, 7JES, EPDM Rubber MPN:7JS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8512454

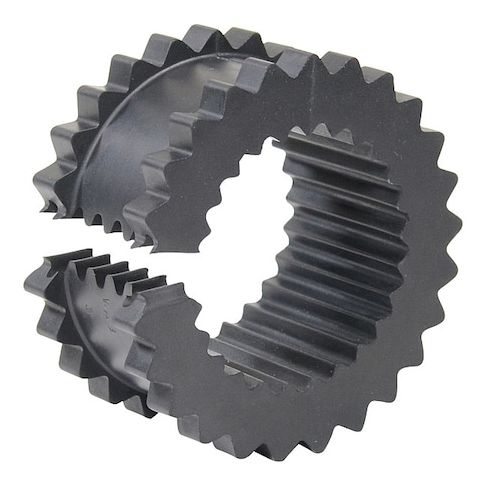

Sure-Flex Sleeve Coupling Insert, 7JES, EPDM Rubber
The Sure-Flex Sleeve Coupling Insert from TB WOODS is a versatile and reliable solution for various industrial applications. Designed for use in blowers, compressors, conveyors, mixers, motors, and pumps, this EPDM rubber insert provides a secure and flexible connection, capable of withstanding speeds up to 5,250 RPM and torques of 940 in-lb. Its 1-degree angular misalignment and 0.02-inch parallel misalignment ensure smooth operation, while its 2,769 in-lb/rad torsional stiffness provides stability. With a maximum operating temperature of 275°F, this insert is ideal for high-temperature applications, offering long-lasting performance and minimizing downtime.
Top product features:
- Sleeve Coupling Insert allows for angular misalignment of up to 1 degree.
- EPDM rubber construction provides resistance to heat and chemicals.
- Insert is constructed as a new 1-piece split design for easy installation.
Top product applications:
- Blowers
- Compressors
- Conveyors
Sleeve Coupling Insert, Coupling Size 7, Maximum Speed 5,250 RPM, Maximum Torque 940 in-lb, Outside Diameter 4 11/32 in, Insert Construction - New 1-Piece Split, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 1.5 hp, Insert Material EPDM, Insert Width 2 3/16 in, Parallel Misalignment 0.02 in, System of Measurement Inch, Torsional Stiffness 2,769 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.10
- Package Height: 2.60
- Package Weight: 0.69
Product info last updated on February 23, 2026 1:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
