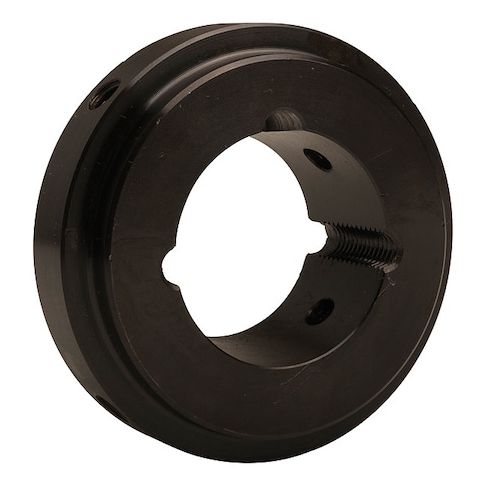

Dura-Flex Taper Lock Cplng Hub, WE50, Max 2-11/16" MPN:WE50HTL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5728292
Dura-Flex Taper Lock Cplng Hub, WE50, Max 2-11/16"
The Dura-Flex Taper Lock Coupling Hub is designed for demanding applications that require high torque and reliability. Suitable for use in industries such as mining, construction, and manufacturing, this hub can handle up to 12 horsepower at 100 RPM and a maximum speed of 4,200 RPM. Its angular misalignment capability of 3 degrees and parallel misalignment of 0.09375 inches make it an ideal solution for applications where shaft misalignment is a concern. The hub's durable design and high torsional stiffness ensure long-lasting performance and minimal maintenance. It is available for immediate shipment in quantities of one or more.
Top product features:
- Angular misalignment up to 3 degrees
- Maximum torque of 7,650 in-lb
- Torsional stiffness of 123,000 in-lb/rad
Top product applications:
- Power Generation Equipment
- High-Speed Material Handling Systems
- Industrial Automation Applications
Taper Lock Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE50, Horsepower @ 100 RPM 12 hp, Maximum Speed 4,200 RPM, Bore Type Taper Lock Bushing, For Bushing Size TL2517, Maximum Torque 7,650 in-lb, Keyway Depth Not Applicable, Keyway Width Not Applicable, Hub Diameter 8.13 in, Parallel Misalignment 0.09375 in, Bore Diameter Not Applicable, Screw Thread Size Not Applicable, Set Screw Location Not Applicable, System of Measurement Inch, Torsional Stiffness 123,000 in-lb/rad
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 10.00
- Package Weight: 19.80
Product info last updated on February 26, 2026 11:45am UTC
Category: Bearings, V-belts and Power Transmission Equipment
