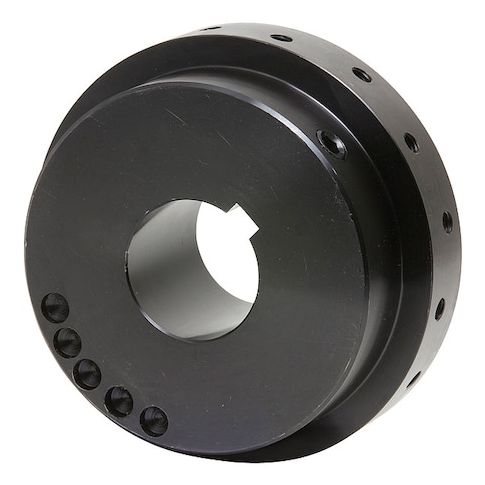

Dura-Flex Tire Couplng Hub, WE50, Plain Bore 1-1/4" MPN:WE50HMPB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5701744
Dura-Flex Tire Couplng Hub, WE50, Plain Bore 1-1/4"
The Dura-Flex Tire Coupling Hub is a versatile and reliable solution for connecting and transferring power in various applications. Designed for angular misalignment of up to 3 degrees, this coupling hub ensures smooth and efficient operation in demanding environments. With a maximum torque of 7,650 in-lb and a horsepower rating of 12 hp at 100 RPM, it's suitable for use in industrial machinery, material handling equipment, and other applications requiring high power transmission. Its compact design and ease of installation make it an ideal choice for a wide range of industries, including manufacturing, logistics, and construction.
Top product features:
- Angular misalignment up to 3 degrees
- Handles up to 12 horsepower at 100 RPM
- Maximum torque of 7,650 in-lb
Top product applications:
- Conveyor systems for heavy-duty industrial use
- Industrial machinery such as pumps and compressors
- Heavy-duty agricultural equipment such as tractors and combines
Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE50, Horsepower @ 100 RPM 12 hp, Maximum Speed 4,200 RPM, Bore Type Round, For Bushing Size Not Applicable, Maximum Torque 7,650 in-lb, Keyway Depth Not Applicable, Keyway Width Not Applicable, Hub Diameter 8.13 in, Parallel Misalignment 0.09375 in, Bore Diameter 1 1/8 in, Screw Thread Size 5/8 In.-11, Set Screw Location Inside, System of Measurement Inch, Torsional Stiffness 123,000 in-lb/rad, Length through Bore 2 3/4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 10.00
- Package Weight: 28.00
Product info last updated on January 22, 2026 4:02am UTC
Category: Bearings, V-belts and Power Transmission Equipment
