Dura-Flex Tire Coupling Hub, WE20, Plain Bore 7/8" MPN:WE20HMPB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5688182

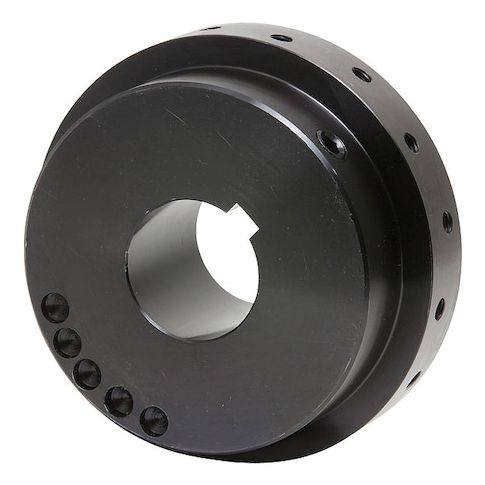

Dura-Flex Tire Coupling Hub, WE20, Plain Bore 7/8"
The Dura-Flex Tire Coupling Hub is a versatile and reliable component designed for various industrial applications. Its angular misalignment capability of 3 degrees and parallel misalignment of 0.09375 inches make it suitable for use in applications where flexibility and adaptability are essential. With a maximum torque of 2,300 in-lb and a horsepower rating of 3.7 hp at 100 RPM, this coupling hub can handle demanding tasks. Its compact design and ease of installation make it an ideal choice for use in power transmission systems, conveyor belts, and other machinery. Its durability and performance make it a valuable addition to any industrial setup.
Top product features:
- Angular Misalignment 3 Degrees
- Coupling Size WE20 allows for high horsepower at low RPM
- Maximum Torque 2,300 in-lb for heavy-duty applications
Top product applications:
- Power transmission in industrial machinery
- Industrial equipment mounting
- Conveyor systems
Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE20, Horsepower @ 100 RPM 3.7 hp, Maximum Speed 6,600 RPM, Bore Type Round, For Bushing Size Not Applicable, Maximum Torque 2,300 in-lb, Keyway Depth Not Applicable, Keyway Width Not Applicable, Hub Diameter 4.48 in, Parallel Misalignment 0.09375 in, Bore Diameter 7/8 in, Screw Thread Size 3/8 In.-16, Set Screw Location Inside, System of Measurement Inch, Torsional Stiffness 27,600 in-lb/rad, Length through Bore 2 1/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 6.90
Product info last updated on February 2, 2026 12:43pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
