Dura-Flex Taper Lock Cplng Hub, WE20, Max 1-11/16" MPN:WE20HTL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5641991

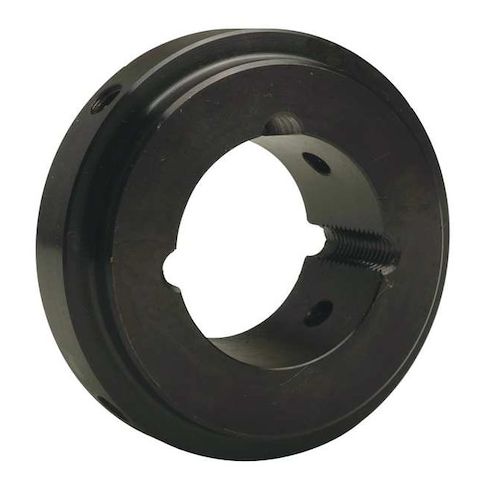

Dura-Flex Taper Lock Cplng Hub, WE20, Max 1-11/16"
The Dura-Flex Taper Lock Coupling Hub is a reliable and efficient solution for power transmission applications. Designed for use with taper lock bushings, this hub enables smooth operation and supports angular misalignment up to 3 degrees. With a maximum horsepower of 3.7 at 100 RPM and a maximum torque of 2,300 in-lb, it's ideal for a variety of applications, including industrial machinery, pumps, and gearboxes. Its compact design and high torsional stiffness make it a popular choice for manufacturers seeking a durable and reliable coupling solution.
Top product features:
- Angular misalignment up to 3 degrees
- Maximum horsepower at 100 RPM of 3.7 hp
- Maximum torque of 2,300 in-lb
Top product applications:
- Pump drives
- Conveyor drives
- Paper mill drives
Taper Lock Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE20, Horsepower @ 100 RPM 3.7 hp, Maximum Speed 6,600 RPM, Bore Type Taper Lock Bushing, For Bushing Size TL1610, Maximum Torque 2,300 in-lb, Keyway Depth Not Applicable, Keyway Width Not Applicable, Hub Diameter 4.48 in, Parallel Misalignment 0.09375 in, Bore Diameter Not Applicable, Screw Thread Size Not Applicable, Set Screw Location Not Applicable, System of Measurement Inch, Torsional Stiffness 27,600 in-lb/rad
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 3.40
Product info last updated on February 22, 2026 6:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
