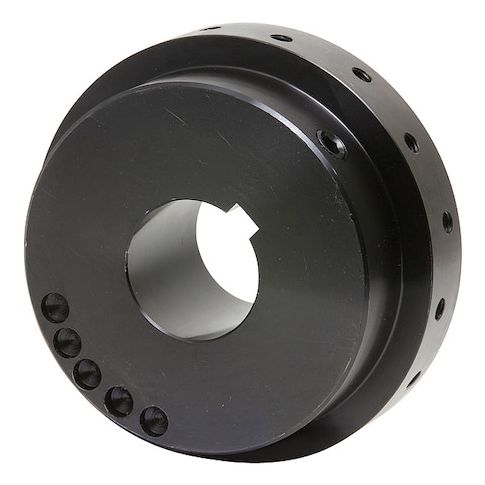

Dura-Flex Tire Coupling Hub, WE40, Bore 3-3/8" MPN:WE40H338
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5627036
Dura-Flex Tire Coupling Hub, WE40, Bore 3-3/8"
The Dura-Flex Tire Coupling Hub from TB Woods is a reliable and high-performance solution for connecting power transmission components. Its angular misalignment capability of 3 degrees and parallel misalignment of 0.09375 inches make it ideal for applications where slight misalignment is expected. With a maximum torque of 5,500 in-lb and a horsepower rating of 8.9 hp at 100 RPM, this hub is suitable for heavy-duty use in industries such as manufacturing, material handling, and construction. Its compact design and ease of installation make it a popular choice for applications where space is limited.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in coupling applications
- Round keyed bore type facilitates secure keying and reduced vibration
- Maximum torque of 5,500 in-lb enables the hub to handle high-torque applications
Top product applications:
- Tire Coupling Hub WE40 is suitable for applications requiring angular misalignment up to 3 degrees.
- Tire Coupling Hub WE40 can be used in applications where high horsepower is required, up to 8.9 hp at 100 RPM.
- Tire Coupling Hub WE40 is suitable for applications with high maximum torque requirements, up to 5,500 in-lb.
Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE40, Horsepower @ 100 RPM 8.9 hp, Maximum Speed 5,000 RPM, Bore Type Round Keyed, For Bushing Size Not Applicable, Maximum Torque 5,500 in-lb, Keyway Depth 7/16 in, Keyway Width 7/8 in, Hub Diameter 6.63 in, Parallel Misalignment 0.09375 in, Bore Diameter 3 3/8 in, Screw Thread Size 5/8 In.-11, Set Screw Location Over Keyway, System of Measurement Inch, Torsional Stiffness 65,200 in-lb/rad, Length through Bore 2 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.75
- Package Width: 3.12
- Package Height: 6.75
- Package Weight: 13.10
Product info last updated on February 11, 2026 11:34pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
