Dura-Flex Tire Coupling Hub, WE2, Bore 7/8" MPN:WE2H78
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4273026

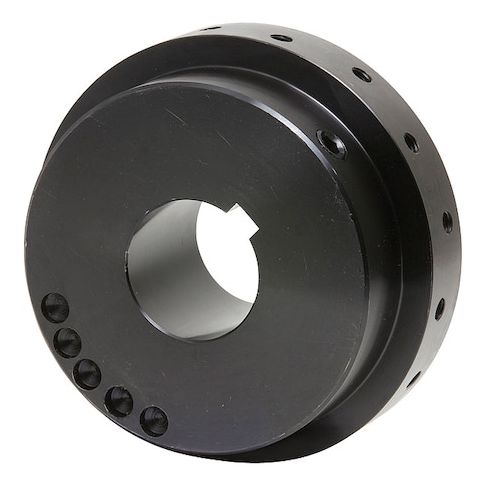

Dura-Flex Tire Coupling Hub, WE2, Bore 7/8"
The Dura-Flex Tire Coupling Hub is a versatile and reliable solution for connecting and driving tire-based systems. Its ability to withstand angular misalignment of up to 4 degrees makes it ideal for applications where precision and flexibility are crucial. With a maximum speed of 7,500 RPM and a maximum torque of 190 in-lb, this hub is suitable for a wide range of industries, including manufacturing, packaging, and material handling. Its compact design and lightweight construction make it easy to integrate into existing systems, while its high torsional stiffness ensures smooth and efficient operation.
Top product features:
- Handles angular misalignment of up to 4 degrees
- Allows for parallel misalignment of up to 0.0625 inches
- Provides a maximum torque of 190 in-lb
Top product applications:
- Power Take-Off (PTO) applications in agricultural equipment
- High-speed power transmission in industrial machinery
- Low-torque applications in material handling equipment
Tire Coupling Hub, Angular Misalignment 4 Degrees , Coupling Size WE2, Horsepower @ 100 RPM 0.3 hp, Maximum Speed 7,500 RPM, Bore Type Round Keyed, For Bushing Size Not Applicable, Maximum Torque 190 in-lb, Keyway Depth 3/32 in, Keyway Width 3/16 in, Hub Diameter 1.85 in, Parallel Misalignment 0.0625 in, Bore Diameter 7/8 in, Screw Thread Size 3/8 In.-16, Set Screw Location Over Keyway, System of Measurement Inch, Torsional Stiffness 3,170 in-lb/rad, Length through Bore 15/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.30
- Package Height: 1.20
- Package Weight: 0.45
Product info last updated on February 2, 2026 4:42pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
