L-Jaw Coupling Hub, L090, Sint Iron, 15mm MPN:L09015MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3483776

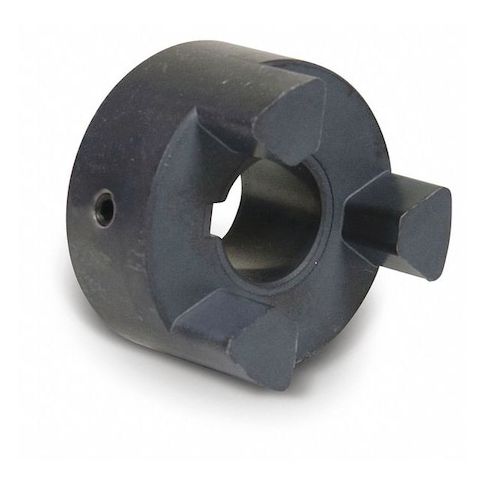

L-Jaw Coupling Hub, L090, Sint Iron, 15mm
The TB WOODS L-Jaw Coupling Hub is a reliable and versatile solution for connecting shafts in various applications. Its compact design and high-speed capabilities make it suitable for use in machine tools, conveyor systems, and other machinery. The hub's carbon steel construction and set screw shaft locking system ensure secure and precise alignment, while the availability of different spider materials (Buna-N, Urethane, and Hytrel) allows for customization to meet specific performance requirements. Ideal for use in industries such as manufacturing, packaging, and material handling, this coupling hub provides a reliable connection for smooth operation and extended equipment lifespan.
Top product features:
- Jaw coupling design allows for high-speed operation up to 9,000 RPM.
- The hub features a set screw shaft locking mechanism for secure connection.
- A round bore with keyway design provides a secure mounting location for shafts.
Top product applications:
- Pumps and compressors
- Conveyor belt drives
- Power transmission systems
Jaw Coupling Hub, Coupling Size L090, Outside Diameter 54 mm, Coupling Overall Length 54 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.23 hp (Buna-N Spider), 0.35 hp (Urethane Spider), 0.64 hp (Hytrel Spider), Keyway Depth 2.3 mm, Keyway Width 5 mm, Bore Diameter 15 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L090H, L090N, L090U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 1.30
- Package Weight: 0.61
Product info last updated on March 27, 2026 11:49am UTC
Category: Bearings, V-belts and Power Transmission Equipment
