Jaw Coupling Hub, L100, Sint Iron, 14mm MPN:L10014MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3345447

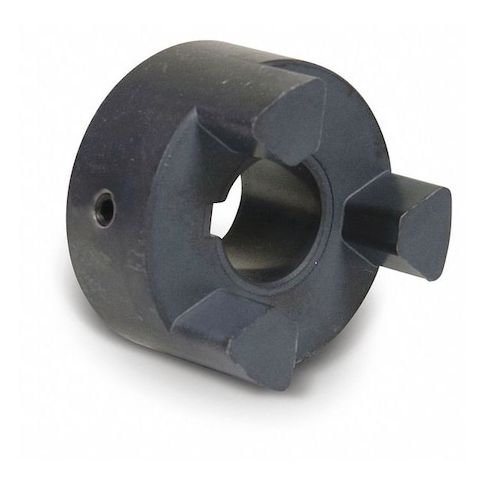

Jaw Coupling Hub, L100, Sint Iron, 14mm
The Jaw Coupling Hub from TB WOODS is a reliable and efficient solution for power transmission applications. Its L100 size features a 14mm bore diameter and a straight jaw profile, making it suitable for a variety of industrial settings. With a maximum speed of 7,000 RPM and a range of horsepower ratings depending on the spider material, this hub offers flexibility and durability. It's ideal for applications such as conveyor systems, machinery, and power transmission equipment, where precise alignment and smooth operation are critical. Its compact design and easy installation make it a convenient choice for engineers and manufacturers.
Top product features:
- Straight jaw profile for smooth and consistent power transmission
- Round bore with keyway for secure shaft locking
- Keyway depth and width for precise shaft alignment and secure key installation
Top product applications:
- Power transmission in industrial machinery
- Gearbox and motor shaft connection in conveyor systems
- High-speed machinery and equipment such as pumps and compressors
Jaw Coupling Hub, Coupling Size L100, Outside Diameter 64 mm, Coupling Overall Length 89 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 0.66 hp (Buna-N Spider), 1 hp (Urethane Spider), 1.8 hp (Hytrel Spider), Keyway Depth 2.3 mm, Keyway Width 5 mm, Bore Diameter 14 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L100H, L100N, L100U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 2.10
- Package Weight: 1.52
Product info last updated on February 7, 2026 11:14am UTC
Category: Bearings, V-belts and Power Transmission Equipment
