L-Jaw Coupling Hub, L050, Sint Iron, 16mm MPN:L05016MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2664295

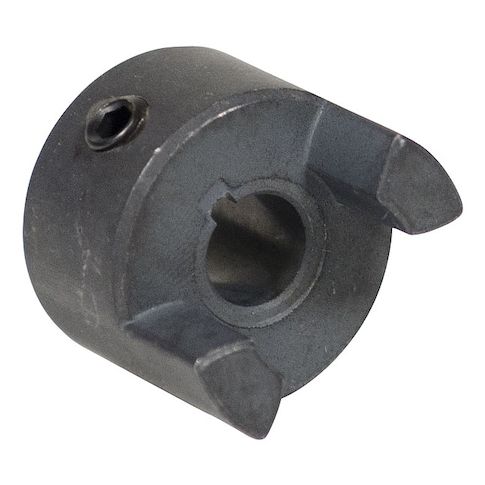

L-Jaw Coupling Hub, L050, Sint Iron, 16mm
The L-Jaw Coupling Hub from TB WOODS is a high-performance coupling solution for various industrial applications. Its robust design and precision engineering ensure reliable power transmission, even at high speeds of up to 18,000 RPM. Suitable for use in a range of industries, including aerospace, automotive, and manufacturing, this coupling hub is compatible with various spider materials, including Buna-N, Urethane, and Hytrel. Its compact size and lightweight design make it an ideal choice for applications where space and weight are critical considerations, such as in robotics and automation.
Top product features:
- Jaw Coupling Hub design allows for high-speed applications up to 18,000 RPM.
- Straight jaw profile provides a secure and consistent connection between shafts.
- Round bore with keyway design enables secure locking of shafts with set screws.
Top product applications:
- Power Transmission Equipment
- Conveyor Belts
- Pumps and Compressors
Jaw Coupling Hub, Coupling Size L050, Outside Diameter 27 mm, Coupling Overall Length 43.7 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 18,000 RPM, Horsepower @ 100 RPM 0.042 hp (Buna-N Spider), 0.06 hp (Urethane Spider), 0.08 hp (Hytrel Spider), Keyway Depth 2.3 mm, Keyway Width 5 mm, Bore Diameter 16 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L050H, L050N, L050U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.10
Product info last updated on February 20, 2026 11:09pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
