Jaw Coupling Hub, L225, Cast Iron, 60mm MPN:L22560MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2299132

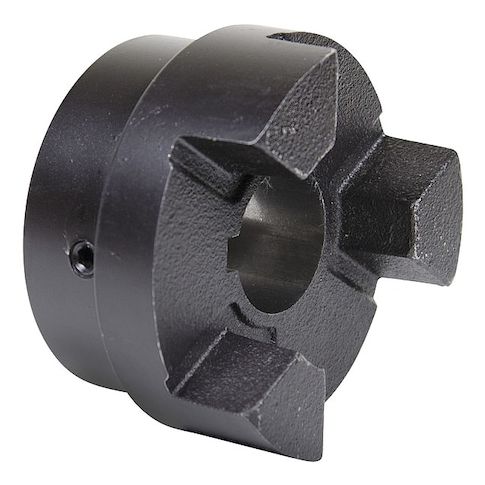

Jaw Coupling Hub, L225, Cast Iron, 60mm
The TB WOODS Jaw Coupling Hub is a reliable and versatile component for power transmission applications. Its cast iron construction provides durability and resistance to wear, while its straight jaw profile ensures a secure connection. Suitable for use in a variety of industries, including manufacturing, food processing, and material handling, this hub is compatible with center elements from top manufacturers. With a maximum speed of 4,600 RPM and horsepower ratings up to 9.9 hp, it can handle demanding applications. Its compact size and easy installation make it a convenient choice for engineers and technicians.
Top product features:
- Cast Iron construction provides durability and resistance to wear and tear.
- Round bore with keyway design allows for secure keyway installation and shaft locking.
- Straight jaw profile enables precise alignment and secure connection of shafts.
Top product applications:
- Power generation and distribution
- Material handling and conveying systems
- Machine tool and CNC applications
Jaw Coupling Hub, Coupling Size L225, Outside Diameter 127 mm, Coupling Overall Length 137 mm, System of Measurement Metric, Hub Material Cast Iron, Maximum Speed 4,600 RPM, Horsepower @ 100 RPM 3.7 hp (Buna-N Spider), 5.6 hp (Urethane Spider), 9.9 hp (Hytrel Spider), Keyway Depth 4.4 mm, Keyway Width 18 mm, Bore Diameter 60 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L190H, L190N, L190U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 3.20
- Package Weight: 7.34
Product info last updated on February 23, 2026 7:28am UTC
Category: Bearings, V-belts and Power Transmission Equipment
