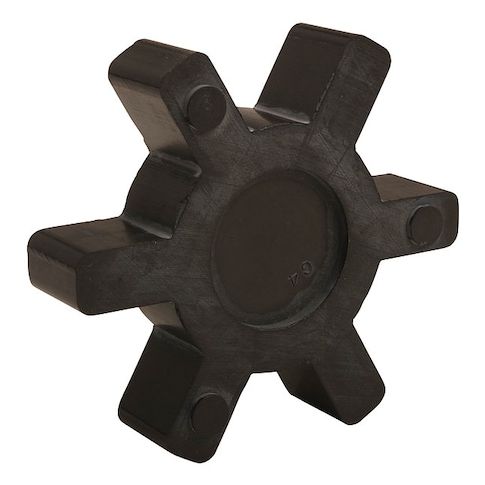

Buna N Spider Insert, L190 Coupling Size, 4 15/32 in Outside Dia, Inch, 2.7 hp MPN:L190N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1980736
Buna N Spider Insert, L190 Coupling Size, 4 15/32 in Outside Dia, Inch, 2.7 hp
The TB WOODS Buna N Spider Insert is a high-performance coupling solution designed for demanding industrial applications. With a maximum speed of 5,000 RPM and a horsepower rating of 2.7 hp at 100 RPM, this insert is ideal for use in power transmission systems where high torque and speed are required. The Buna-N spider material provides excellent durability and resistance to wear and tear, while the parallel misalignment of up to 0.015 in and angular misalignment of 1 degree make it suitable for applications with limited space and alignment constraints. Perfect for use in machinery, equipment, and manufacturing processes.
Top product features:
- Buna-N spider insert provides a fail-safe mechanism
- The product can handle up to 1,726 in-lb of torque
- It can accommodate up to 1 degree of angular misalignment
Top product applications:
- Pumps and pumping systems
- Industrial gearboxes and power transmission systems
- Conveyor systems and material handling equipment
Buna N Spider Insert, Coupling Size L190, Outside Diameter 4 15/32 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp, Spider Material Buna-N, Maximum Torque 1,726 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Angular Misalignment 1 Degrees , Color Black, Compatible Hub Manufacturer Part Number L190, Fail Safe Yes, For Maximum Hub Bore 2 1/8 in, For Misalignment Type Angular, Parallel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 1.00
- Package Weight: 0.30
Product info last updated on January 31, 2026 3:07am UTC
Category: Bearings, V-belts and Power Transmission Equipment
