L-Jaw Coupling Hub, L090, Sint Iron, 22mm MPN:L09022MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1685801

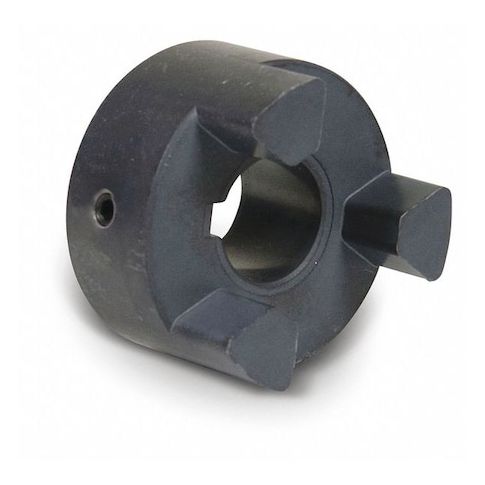

L-Jaw Coupling Hub, L090, Sint Iron, 22mm
The TB WOODS L-Jaw Coupling Hub, L090, is a high-performance coupling solution designed for demanding applications. Suitable for use in a variety of industries, this coupling hub features a robust carbon steel construction and a maximum speed of 9,000 RPM, making it ideal for high-torque applications. With a range of spider options, including Buna-N, Urethane, and Hytrel, users can choose the best material for their specific needs. The hub's compact design and easy installation make it a versatile solution for applications requiring precise power transmission, such as in robotics, material handling, and power generation equipment.
Top product features:
- Jaw coupling hub design allows for high-speed operation up to 9,000 RPM.
- The hub features a straight jaw profile for efficient power transmission.
- The hub includes a keyway with a depth of 2.8 mm and width of 6 mm for secure shaft locking.
Top product applications:
- Power transmission systems
- Material handling equipment
- Conveyor systems
Jaw Coupling Hub, Coupling Size L090, Outside Diameter 54 mm, Coupling Overall Length 54 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.23 hp (Buna-N Spider), 0.35 hp (Urethane Spider), 0.64 hp (Hytrel Spider), Keyway Depth 2.8 mm, Keyway Width 6 mm, Bore Diameter 22 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L090H, L090N, L090U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 1.50
- Package Weight: 0.58
Product info last updated on February 12, 2026 1:35pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
