Jaw Coupling Hub, L225, Cast Iron, 40mm MPN:L22540MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1478522

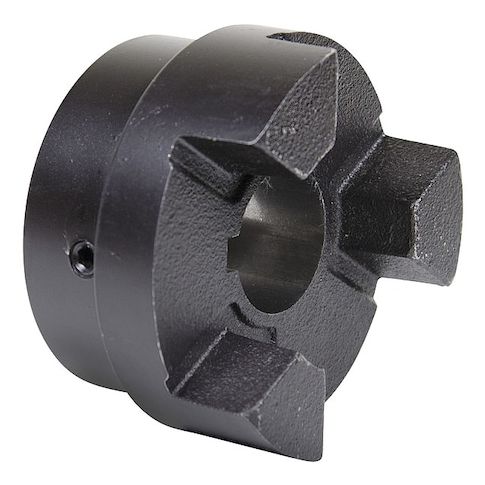

Jaw Coupling Hub, L225, Cast Iron, 40mm
The Jaw Coupling Hub from TB WOODS is a high-performance solution for connecting shafts in demanding applications. With a cast iron construction and a maximum speed of 4,600 RPM, it provides reliable power transmission in a wide range of industries. Suitable for use with various spider materials, including Buna-N, Urethane, and Hytrel, it offers flexibility in meeting specific application requirements. The hub's straight jaw profile and round bore with keyway design ensure secure and efficient power transfer. Ideal for use in heavy-duty machinery, material handling equipment, and other industrial applications, the Jaw Coupling Hub delivers exceptional performance and durability.
Top product features:
- Cast Iron construction provides durability and resistance to wear and tear
- Straight jaw profile enables smooth and efficient power transmission
- Set screw shaft locking system securely holds the shaft in place
Top product applications:
- Power Generation
- Machine Tool Applications
- Paper Mill Machinery
Jaw Coupling Hub, Coupling Size L225, Outside Diameter 127 mm, Coupling Overall Length 137 mm, System of Measurement Metric, Hub Material Cast Iron, Maximum Speed 4,600 RPM, Horsepower @ 100 RPM 3.7 hp (Buna-N Spider), 5.6 hp (Urethane Spider), 9.9 hp (Hytrel Spider), Keyway Depth 3.3 mm, Keyway Width 12 mm, Bore Diameter 40 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L190H, L190N, L190U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 3.20
- Package Weight: 8.80
Product info last updated on February 1, 2026 12:30am UTC
Category: Bearings, V-belts and Power Transmission Equipment
