L-Jaw Coupling Hub, L090, Sint Iron, 16mm MPN:L09016MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1315973

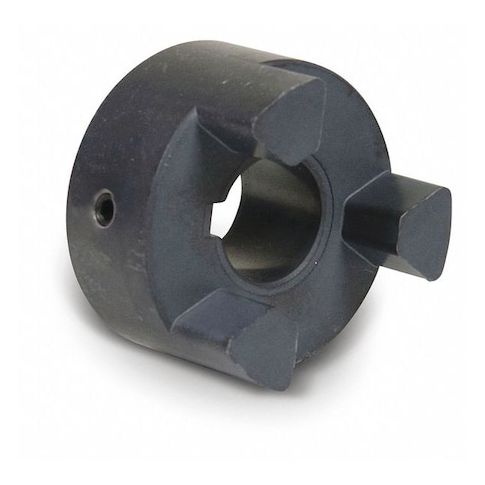

L-Jaw Coupling Hub, L090, Sint Iron, 16mm
This L-Jaw Coupling Hub from TB WOODS is a versatile and reliable component for various industrial applications. Its compact design and straight jaw profile make it ideal for use in high-speed applications, with a maximum speed of 9,000 RPM. The hub is available in different spider materials, including Buna-N, Urethane, and Hytrel, offering a range of torque ratings from 0.23 to 0.64 horsepower. Suitable for use in power transmission and mechanical systems, this coupling hub is compatible with various center element manufacturer part numbers, making it a convenient solution for applications in the aerospace, industrial, and automotive industries.
Top product features:
- It has a maximum speed of 9,000 RPM.
- It can transmit up to 0.64 horsepower at 100 RPM with a Hytrel spider.
- It features a set screw shaft locking type.
Top product applications:
- Power transmission applications where a high-speed, high-torque connection is required
- Pumps and compressors that need to be connected to a motor or other equipment
- Applications where a precise alignment of shafts is necessary, such as in gearboxes and gearmotors
Jaw Coupling Hub, Coupling Size L090, Outside Diameter 54 mm, Coupling Overall Length 54 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.23 hp (Buna-N Spider), 0.35 hp (Urethane Spider), 0.64 hp (Hytrel Spider), Keyway Depth 2.3 mm, Keyway Width 5 mm, Bore Diameter 16 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L090H, L090N, L090U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.30
- Package Height: 1.40
- Package Weight: 0.62
Product info last updated on February 23, 2026 10:15am UTC
Category: Bearings, V-belts and Power Transmission Equipment
