Jaw Coupling Hub, L225, Cast Iron, 38mm MPN:L22538MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1074814

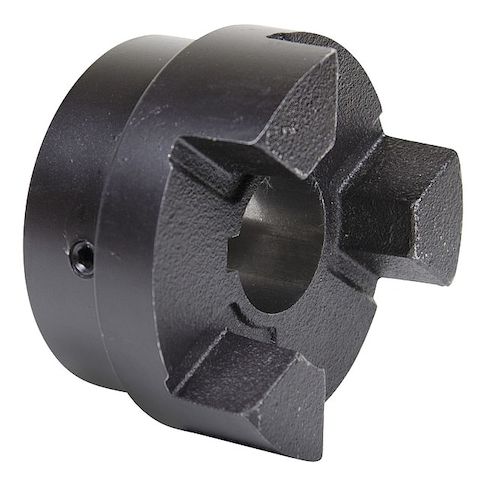

Jaw Coupling Hub, L225, Cast Iron, 38mm
This Jaw Coupling Hub from TB Woods is a reliable and efficient solution for various industrial applications. Its cast iron construction ensures durability and resistance to wear and tear. The hub is compatible with multiple center element manufacturers and features a straight jaw profile for smooth operation. With a maximum speed of 4,600 RPM and horsepower ratings up to 9.9 hp, it can handle demanding tasks. Suitable for use in power transmission systems, the hub is ideal for applications such as pumps, motors, and gearboxes. Its compact size and easy installation make it a versatile choice for various industries.
Top product features:
- The product has a maximum speed of 4,600 RPM.
- It can handle a horsepower of 3.7 hp at 100 RPM with a Buna-N spider.
- It has a keyway depth of 3.3 mm for secure shaft locking.
Top product applications:
- Power Generation
- Pumps
- Compressors
Jaw Coupling Hub, Coupling Size L225, Outside Diameter 127 mm, Coupling Overall Length 137 mm, System of Measurement Metric, Hub Material Cast Iron, Maximum Speed 4,600 RPM, Horsepower @ 100 RPM 3.7 hp (Buna-N Spider), 5.6 hp (Urethane Spider), 9.9 hp (Hytrel Spider), Keyway Depth 3.3 mm, Keyway Width 10 mm, Bore Diameter 38 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L190H, L190N, L190U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 5.10
- Package Height: 3.30
- Package Weight: 8.90
Product info last updated on January 31, 2026 12:38am UTC
Category: Bearings, V-belts and Power Transmission Equipment
