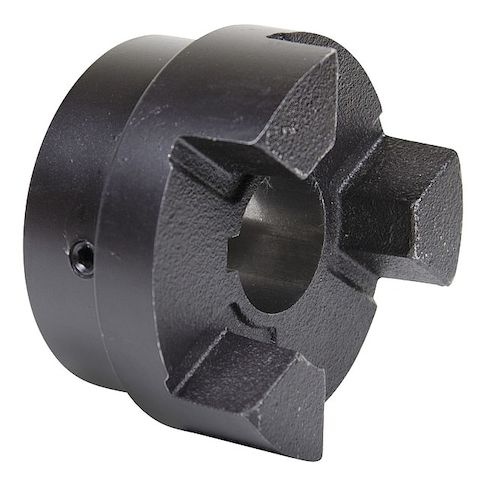

L-Jaw Coupling Hub, L190, Cast Iron, 42mm MPN:L19042MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1050226
L-Jaw Coupling Hub, L190, Cast Iron, 42mm
The TB WOODS L-Jaw Coupling Hub, L190, is a reliable and versatile component designed for high-performance applications. Its cast iron construction and straight jaw profile ensure secure and precise connections, while its set screw shaft locking system provides easy and reliable installation. With a maximum speed of 5,000 RPM and horsepower ratings up to 7.4 hp, this coupling hub is suitable for a wide range of industrial and mechanical applications, including pumps, compressors, and gearboxes. Its compact size and lightweight design make it an ideal choice for applications where space and weight are a concern.
Top product features:
- Cast Iron construction for durability and resistance to wear and tear
- Straight jaw profile for smooth engagement and disengagement with mating components
- Set screw shaft locking for secure and reliable connection to rotating shafts
Top product applications:
- Power Generation
- Pumps and Compressors
- Conveyors and Crushers
Jaw Coupling Hub, Coupling Size L190, Outside Diameter 114 mm, Coupling Overall Length 124 mm, System of Measurement Metric, Hub Material Cast Iron, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 4.1 hp (Urethane Spider), 7.4 hp (Hytrel Spider), Keyway Depth 3.3 mm, Keyway Width 12 mm, Bore Diameter 42 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L190H, L190N, L190U
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.30
- Package Height: 3.30
- Package Weight: 7.00
Product info last updated on February 24, 2026 12:25pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
