L-Jaw Coupling Hub, L100, Sint Iron, 25mm MPN:L10025MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0544196

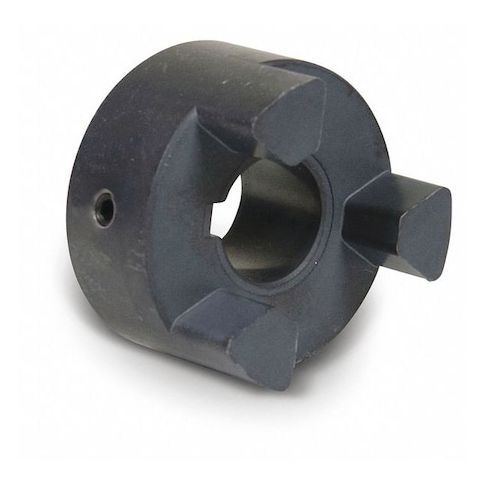

L-Jaw Coupling Hub, L100, Sint Iron, 25mm
The TB WOODS L-Jaw Coupling Hub is a high-performance solution for connecting shafts in demanding applications. Its robust design and durable carbon steel construction enable smooth operation at speeds up to 7,000 RPM, making it suitable for use in industrial machinery, power transmission systems, and heavy-duty equipment. The hub's versatility is enhanced by its compatibility with various center element manufacturers, offering flexibility in system design. Its compact size and low weight also make it ideal for applications where space and weight are critical considerations, such as in aerospace and automotive industries.
Top product features:
- Jaw Coupling Hub allows for flexible connection between shafts
- Straight jaw profile enables smooth power transmission
- Round bore with keyway facilitates secure shaft locking via set screw
Top product applications:
- Power transmission in industrial machinery
- Gearbox and motor shaft connection in conveyor systems
- High-speed power transmission in textile machinery
Jaw Coupling Hub, Coupling Size L100, Outside Diameter 64 mm, Coupling Overall Length 89 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 0.66 hp (Buna-N Spider), 1 hp (Urethane Spider), 1.8 hp (Hytrel Spider), Keyway Depth 3.3 mm, Keyway Width 8 mm, Bore Diameter 25 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L100H, L100N, L100U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 2.20
- Package Weight: 1.40
Product info last updated on February 3, 2026 11:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
