L-Jaw Coupling Hub, AL075, Aluminum, 3/4" MPN:AL07534
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0542516

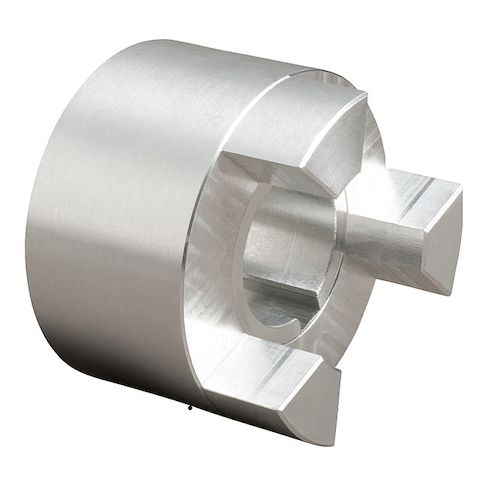

L-Jaw Coupling Hub, AL075, Aluminum, 3/4"
The L-Jaw Coupling Hub from TB WOODS is a reliable and efficient solution for power transmission applications. This aluminum hub features a straight jaw profile and a round bore with keyway, making it compatible with a variety of center elements. With a maximum speed of 11,000 RPM and a range of horsepower ratings, it's suitable for a wide range of applications, including industrial machinery, pumps, and conveyor systems. Its compact size and lightweight design make it ideal for space-constrained environments. The L-Jaw Coupling Hub is built to last, providing a long-lasting and maintenance-free connection in demanding power transmission applications.
Top product features:
- It has a round bore with keyway for secure shaft locking.
- The hub features a straight jaw profile for efficient power transmission.
- It is designed with a set screw shaft locking type for easy installation and adjustment.
Top product applications:
- Motor Mounts
- Gearboxes
- Pumps
Jaw Coupling Hub, Coupling Size L075, Outside Diameter 1 3/4 in, Coupling Overall Length 2 1/8 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 11,000 RPM, Horsepower @ 100 RPM 0.14 hp (Buna-N Spider), 0.21 hp (Urethane Spider), 0.36 hp (Hytrel Spider), Keyway Depth 3/32 in, Keyway Width 3/16 in, Bore Diameter 3/4 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L075H, L075N, L075U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 1.00
- Package Weight: 0.30
Product info last updated on March 6, 2026 9:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
