L-Jaw Coupling Hub, L090, Sint Iron, 20mm MPN:L09020MM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0342921

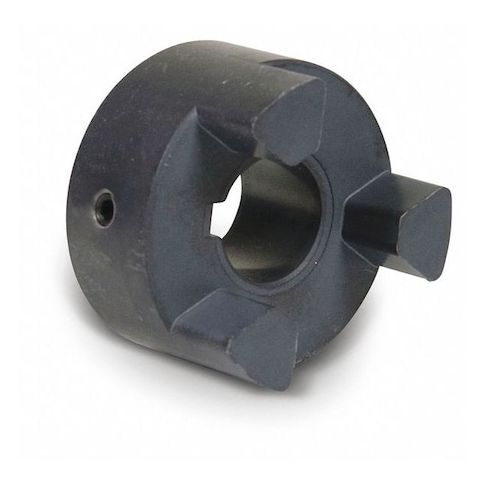

L-Jaw Coupling Hub, L090, Sint Iron, 20mm
The L-Jaw Coupling Hub from TB WOODS is a high-performance component designed for demanding applications. With a maximum speed of 9,000 RPM, it can handle high-torque loads while maintaining precision and stability. Suitable for use in a variety of industries, including manufacturing, aerospace, and power generation, this coupling hub offers reliable performance and long lifespan. Its compact design and simple installation make it an ideal choice for applications requiring precise alignment and smooth operation. The L-Jaw Coupling Hub is compatible with various center elements, including Buna-N, Urethane, and Hytrel spiders, offering flexibility and customization options.
Top product features:
- Jaw Coupling Hub allows for flexible connection of shafts with a round bore and keyway.
- Set screw shaft locking type ensures secure attachment of shafts to the hub.
- Straight jaw profile enables smooth engagement and disengagement of the coupling.
Top product applications:
- Gearbox Output Shaft
- High-Speed Power Transmission Systems
- High-Torque Power Transmission Systems
Jaw Coupling Hub, Coupling Size L090, Outside Diameter 54 mm, Coupling Overall Length 54 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.23 hp (Buna-N Spider), 0.35 hp (Urethane Spider), 0.64 hp (Hytrel Spider), Keyway Depth 2.8 mm, Keyway Width 6 mm, Bore Diameter 20 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L090H, L090N, L090U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 1.40
- Package Weight: 0.61
Product info last updated on January 31, 2026 9:09pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
