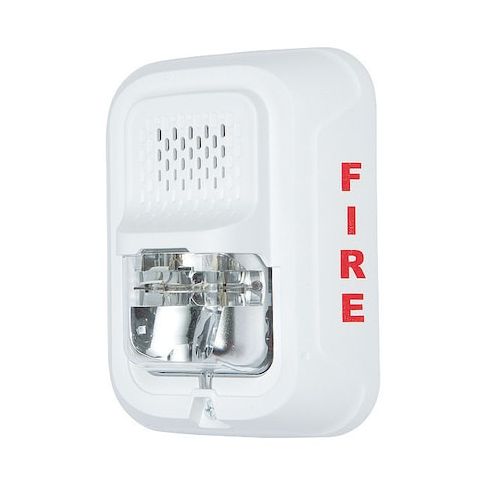

Horn Strobe, FIRE, Wall or Ceiling Mount, White, 12/24V, Includes Mounting Plate MPN:P4WL

• The SYSTEM SENSOR - P4WL is a horn strobe designed for indoor mounting on walls or ceilings. It is rated for operation on 12/24V DC and features both audible and visible alarm signals, is rated for a peak sound output of 88 dBA and provides selectable light intensity settings of 15–185 cd. The device includes a universal mounting plate with a snap-in feature for installation alignment and is compatible with System Sensor MDL3 Sync Module devices and specified SpectrAlert/SpectrAlert Advance systems (as applicable to the product’s listed compatibility). It is marked with the "FIRE" legend and provides audible and visible alarm signals.

  Key Features:


  • - Voltage: Rated for operation on 12/24V DC
  • - Alarm Current: 43 to 222mA DC, 60 to 257mA FWR
  • - Sound Style: Horn with peak output at 88 dBA
  • - Light Intensity Options: 15, 30, 75, 95, 110, 135, 150, 185 cd
  • - Mount Type: Wall or Ceiling installation
  • - Dimensions: 6 5/8 in height, width, and length
  • 3 5/16 in depth
  • - Housing Color: White with clear lens
  • - Ambient Operating Temperature Range: 32°F to 120°F
  • - Humidity Range: 10% to 93% RH
  • - Includes Mounting Hardware and Mounting Plate
  • - Control Protocol: Direct Wire connection with wire leads
  • - Standards Met: UL 1638, UL 464
  • - Features Universal Mounting Plate with Preliminary Snap-In Feature for Screw Attachment
