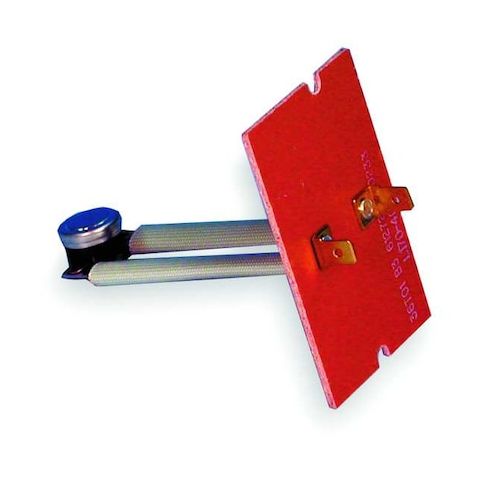

Thermostat, Limit & Plenum, Range 220-180F MPN:SHL517
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1843335
Thermostat, Limit & Plenum, Range 220-180F
The Supco Plenum Thermostat is a versatile temperature control solution for a wide range of applications. This SPST thermostat is designed for limit control, providing automatic reset and reliable performance in plenum spaces. With a temperature range of 180-220°F, it's ideal for use in HVAC systems, industrial processes, and commercial settings. Its compact design and easy installation make it a convenient choice for new installations or retrofits. The thermostat's automatic reset feature ensures continuous operation, while its durable construction withstands harsh environments. Suitable for 120V and 240V AC applications, it's a reliable solution for temperature control needs.
Top product features:
- Limit Control: The thermostat controls temperature limits to prevent overheating or overcooling.
- Open on Rise Switch Action: The thermostat opens its switch when the temperature rises above a set point, allowing for automatic shut-off.
- Automatic Reset: The thermostat automatically resets its switch to the closed position when the temperature drops below a set point, allowing for continuous operation.
Top product applications:
- Limit Control
- Contact Form SPST
- Plenum Thermostat
Plenum Thermostat, Product Type Plenum Thermostat, Application Limit Control, Contact Form SPST, Switch Action Open on Rise, Switch Opening Temperature 220 Degrees F, Switch Closing Temperature 180 Degrees F, Insertion Length 3 1/8 in, Input Voltage 120V AC, 240V AC, Overall Height 3 in, Overall Width 1 7/8 in, Series SHL, Reset Type Automatic Reset, Element Type Insertion, Resistive Amps @ 120V AC 15 A, Resistive Amps @ 240V AC 10 A, Inductive Amps @ 120V 3 A, Inductive Amps @ 240V 1.5 A
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 2.50
- Package Weight: 0.10
Product info last updated on January 27, 2026 7:41am UTC
Category: HVACR and Appliance Controls
