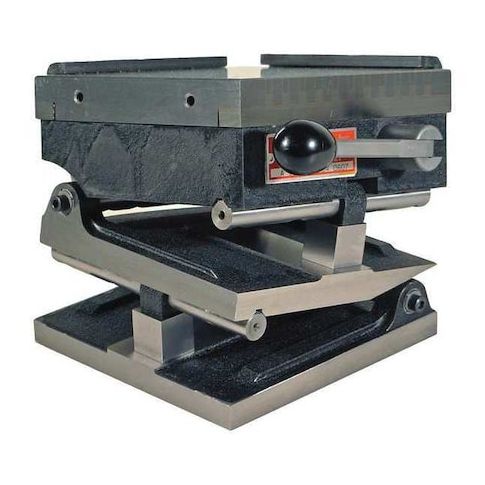

Mag. Sine Plate, 6-1/2inL, 5-3/16inH MPN:A-5-MS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3364886
Mag. Sine Plate, 6-1/2inL, 5-3/16inH
The Suburban Magnetic Sine Plate is a precision tool for accurate measurements and layout work. Its tilting angle range of 0-45 degrees allows for effortless measurement of angles and squares, while its high precision squareness and parallelism ensure accurate results. Ideal for machinists, engineers, and craftsmen, this magnetic sine plate is perfect for tasks such as layout, measurement, and inspection. Its compact size and magnetic base make it easy to use on a variety of surfaces, and its durable construction ensures it will withstand heavy use. Perfect for applications in machine shops, fabrication shops, and manufacturing facilities.
Top product features:
- Compound angle measurement capability
- Tilts to 45 degrees
- 0.0002 inch precision squareness and parallelism
Top product applications:
- Machine shop calibration and setup
- Toolroom layout and organization
- Precision engineering and prototyping
Magnetic Sine Plate, Compound Yes, Precision Yes, Length 6-1/2 In., Width 6-1/2 In., Height Closed 5-3/16 In., Ground Finish, Tilting Angle 0 Degrees to 45 Degrees , Squareness 0.0002 In., Parallelism 0.0002 In.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 10.75
- Package Weight: 40.00
Product info last updated on January 22, 2026 5:57pm UTC
Category: Measuring and Marking Tools
