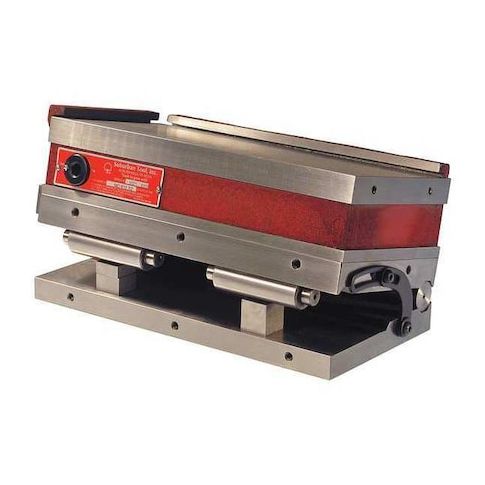

Mag. Sine Plate, 6inL, 12inW, 5-1/4inH MPN:MSP-612-S2
Mag. Sine Plate, 6inL, 12inW, 5-1/4inH
The Mag. Sine Plate from Suburban is a precision tool ideal for a variety of applications, including layout, inspection, and testing. Its tilting angle range of 0 to 45 degrees and squareness of 0.0003 inches make it perfect for ensuring accurate measurements and alignments. With its compact size and ground finish, this magnetic sine plate is easy to integrate into any workshop or laboratory setting. Its benefits include increased precision, reduced measurement errors, and improved efficiency. Suitable for use in industries such as aerospace, automotive, and manufacturing, this sine plate is a valuable addition to any toolset.
Top product features:
- Magnetic properties for holding the plate in place
- Tilts from 0 to 45 degrees for adjustable alignment
- Measures squareness and parallelism with precision to 0.0003 inches
Top product applications:
- Setting up a precision machine shop, the Mag. Sine Plate provides a stable reference point for aligning and measuring machine components.
- In conjunction with a precision protractor, this sine plate allows machinists to accurately set and measure angles in a variety of machining operations.
- The Mag. Sine Plate is used to set up and check the squareness and parallelism of machine tools and workpieces, ensuring accurate and precise machining results.
Magnetic Sine Plate, Compound No, Precision Yes, Length 6 In., Width 12 In., Height Closed 5-1/4 In., Ground Finish, Tilting Angle 0 Degrees to 45 Degrees , Squareness 0.0003 In., Parallelism 0.0003 In.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 12.50
- Package Height: 10.75
- Package Weight: 89.00
Product info last updated on February 4, 2026 10:43pm UTC
Category: Measuring and Marking Tools
